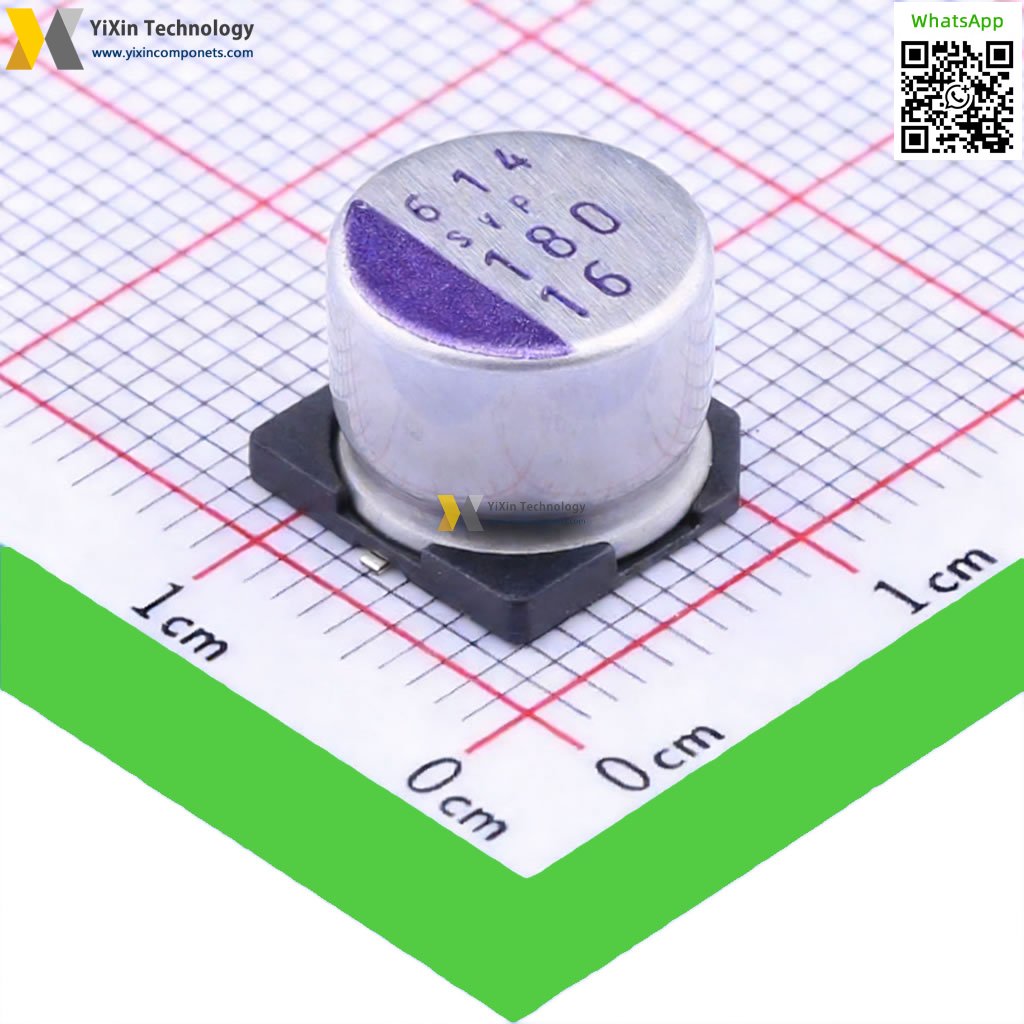

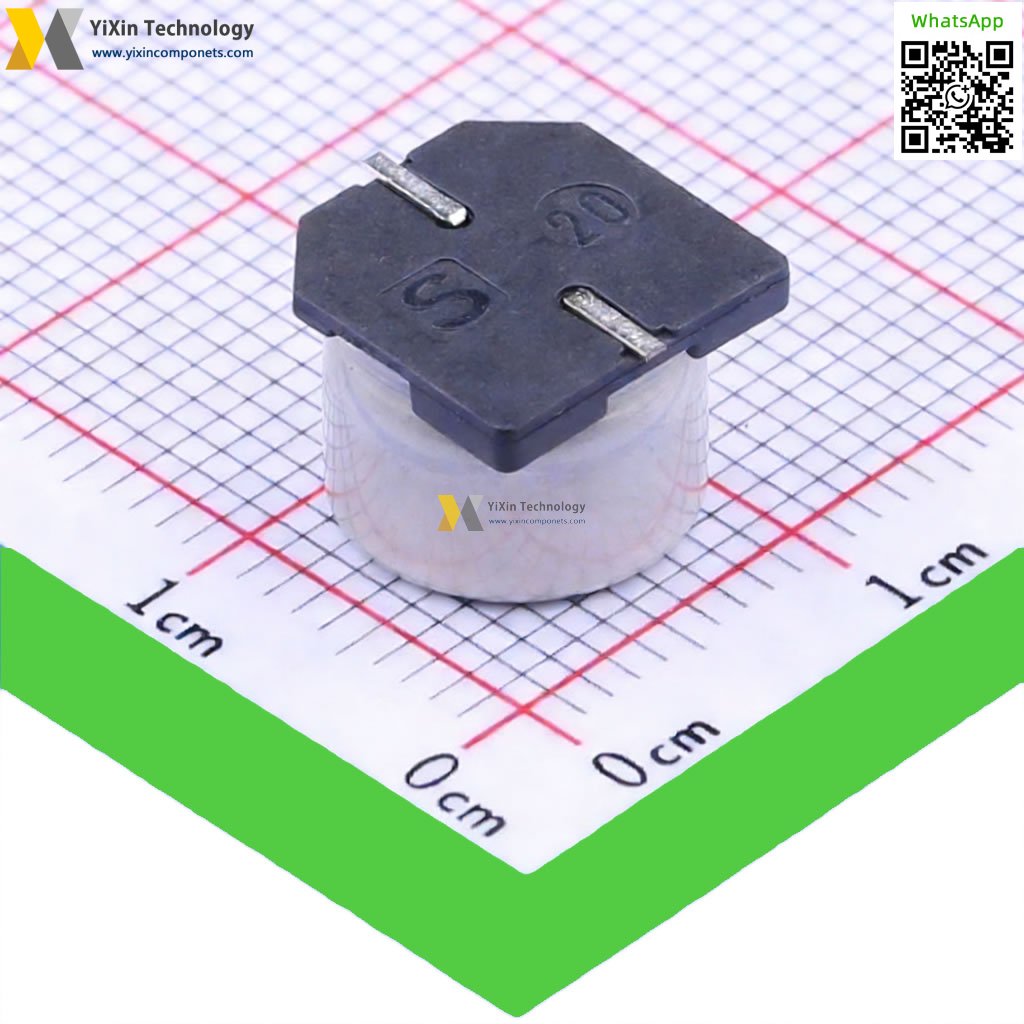

16SVP180MX
| Part Number | 16SVP180MX |
| Manufacturer | Panasonic Electronic Components |
| Category | Capacitors |
| Description | CAP ALUM POLY 180UF 20% 16V SMD |
16SVP180MX Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 16SVP180MX PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Panasonic Electronic Components |
| Product Line | Passive Components |
| Subcategory | Aluminum Polymer Capacitors |
| Series | OS-CON™, SVP |
| Type | Polymer |
| Capacitance | 180µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | 30 mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 151mA @ 120Hz |
| Ripple Current @ High Frequency | 3.02A @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Quick Inquiry
| In Stock | 18824 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
