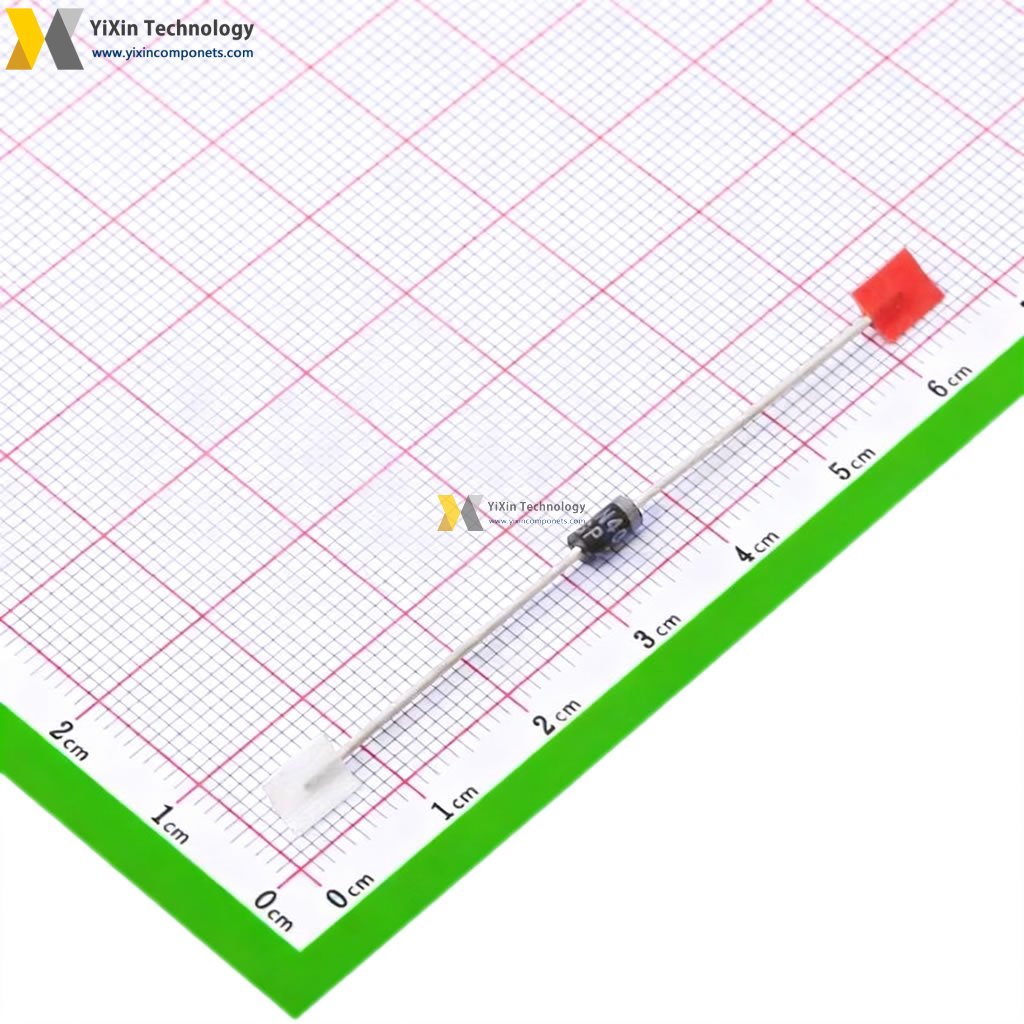

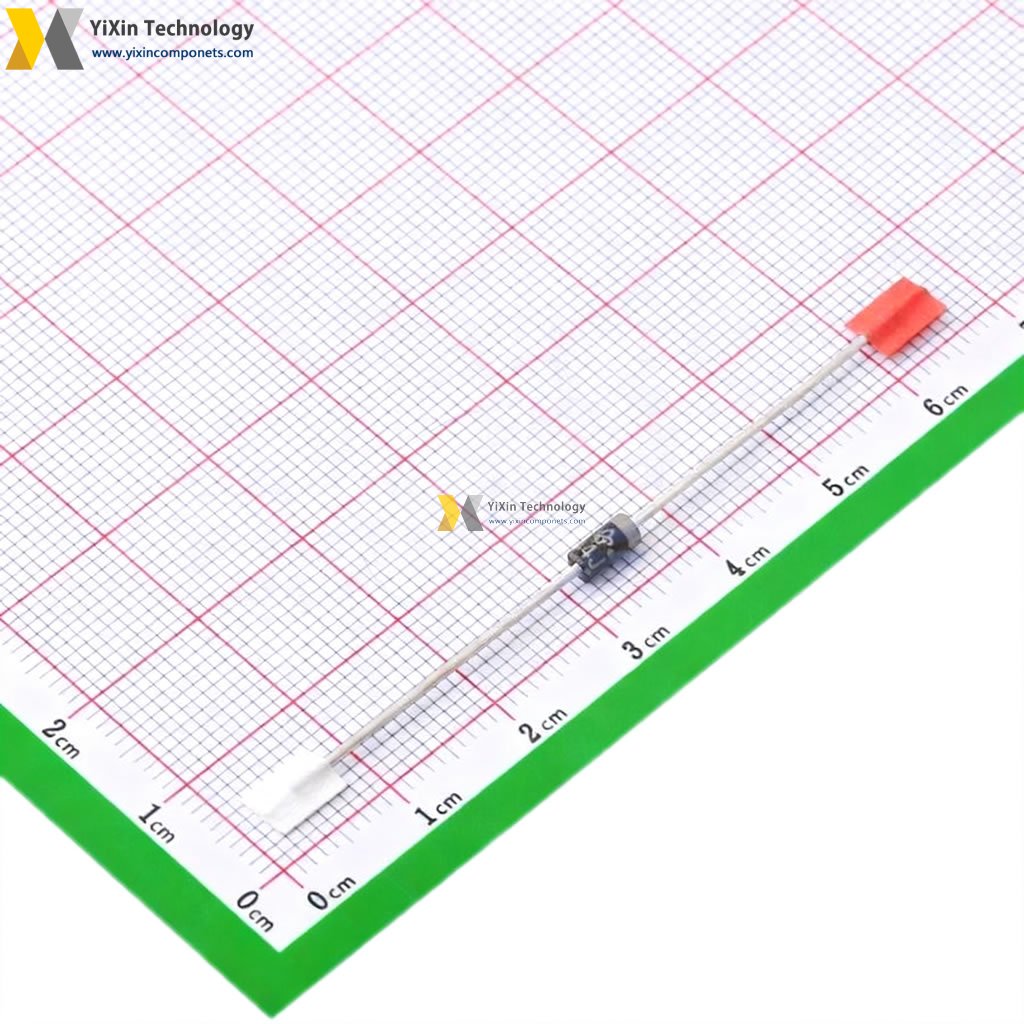

1N4004GP-E3/54
| Part Number | 1N4004GP-E3/54 |
| Manufacturer | Vishay Semiconductor Diodes Division |
| Category | Diodes & Rectifiers |
| Description | DIODE GEN PURP 400V 1A DO204AL |
1N4004GP-E3/54 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 1N4004GP-E3/54 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Vishay Semiconductor Diodes Division |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | SUPERECTIFIER® |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2µs |
| Current - Reverse Leakage @ Vr | 5µA @ 400V |
| Capacitance @ Vr, F | 8pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Operating Temperature - Junction | -65°C ~ 175°C |
