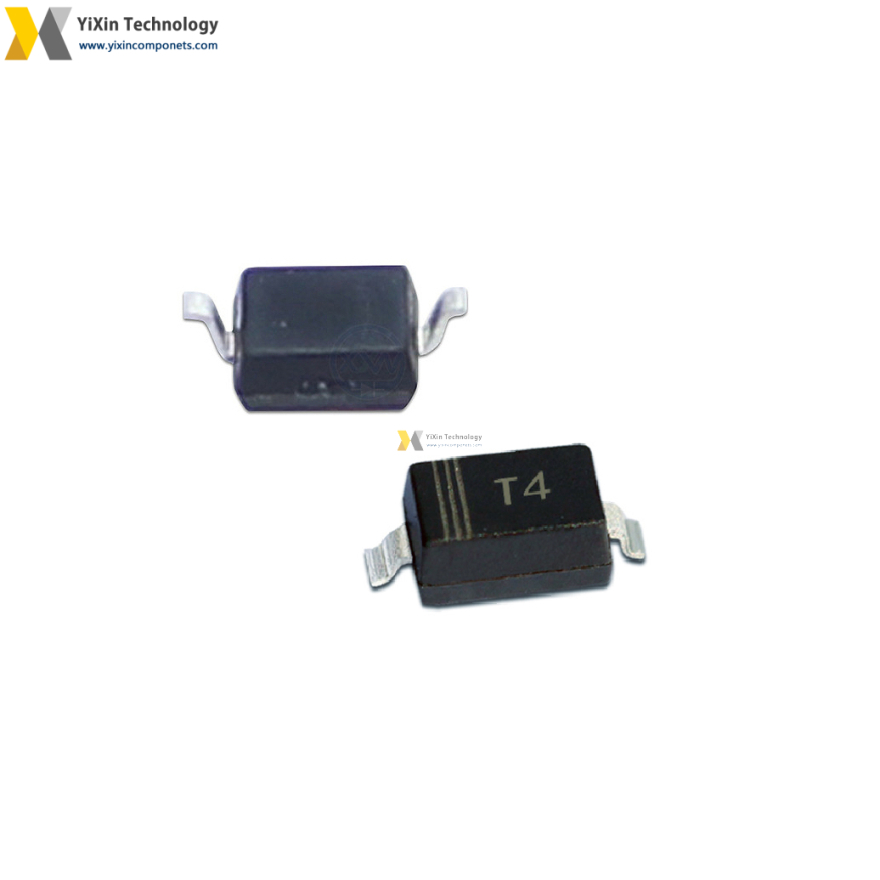

1N4148WS
| Part Number | 1N4148WS |
| Manufacturer | ON Semiconductor |
| Category | Diodes & Rectifiers |
| Description | DIODE GEN PURP 75V 150MA SOD323F |
1N4148WS Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 1N4148WS PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | - |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75V |
| Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 10mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4ns |
| Current - Reverse Leakage @ Vr | 5µA @ 75V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SOD-323F |
| Operating Temperature - Junction | 150°C (Max) |
Quick Inquiry
| In Stock | 369895 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
