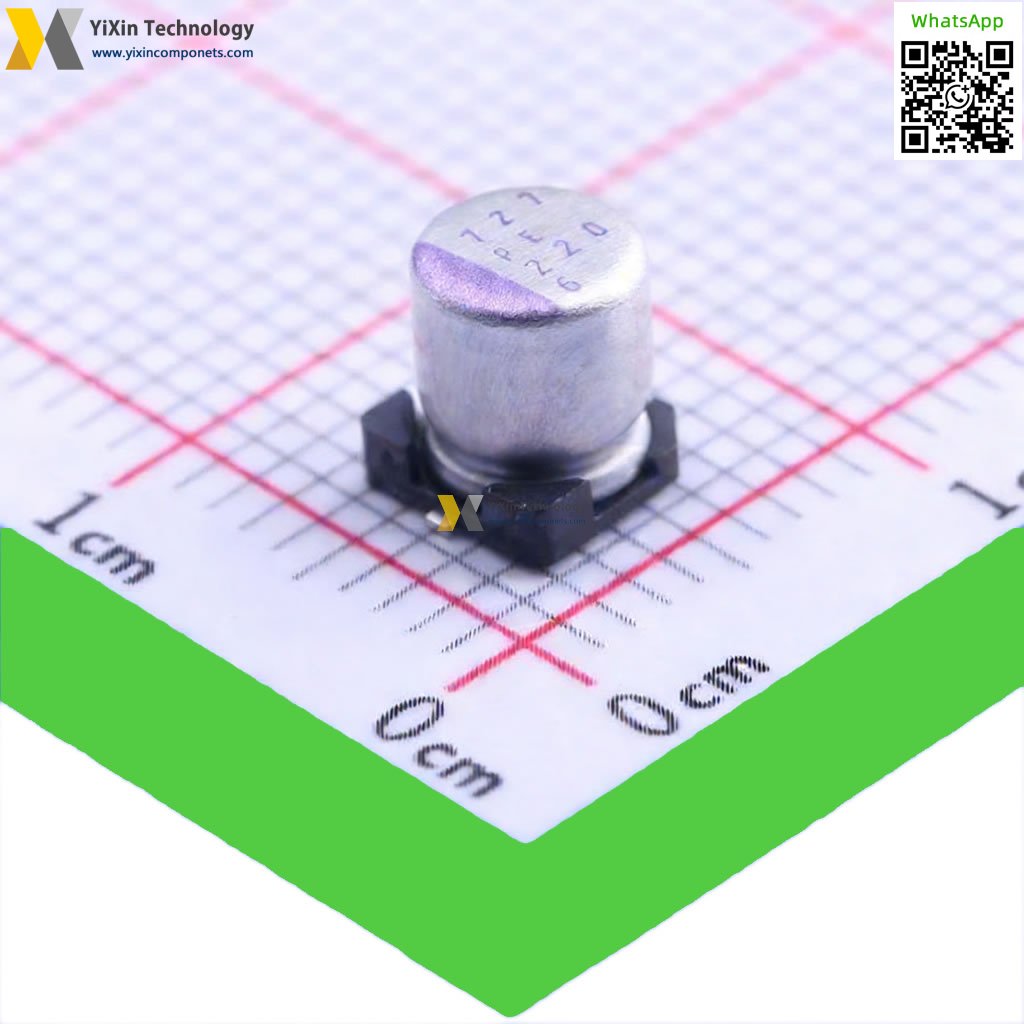

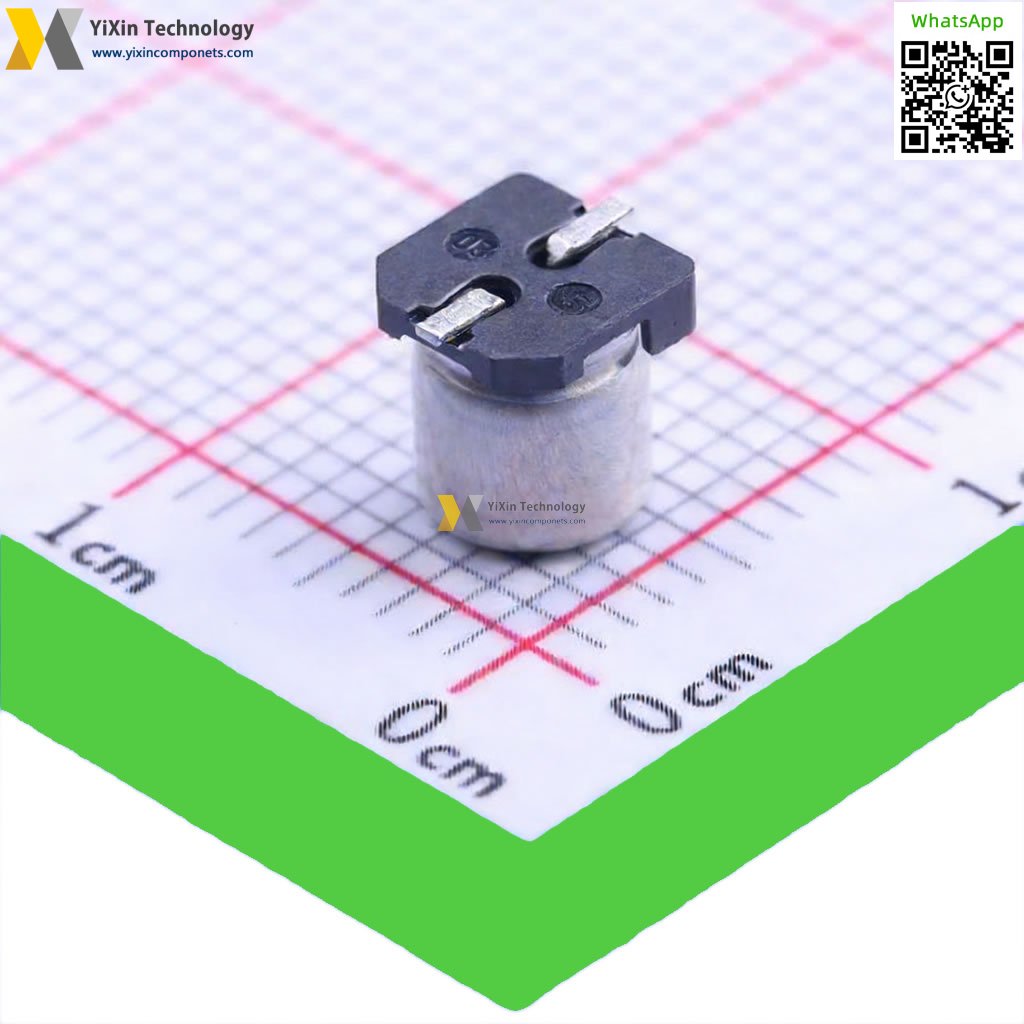

6SVPE220MW
| Part Number | 6SVPE220MW |
| Manufacturer | Panasonic Electronic Components |
| Category | Capacitors |
| Description | CAP ALUM POLY 220UF 20% 6.3V SMD |
6SVPE220MW Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 6SVPE220MW PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Panasonic Electronic Components |
| Product Line | Passive Components |
| Subcategory | Aluminum Polymer Capacitors |
| Series | OS-CON™, SVPE |
| Type | Polymer |
| Capacitance | 220µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 157.5mA @ 120Hz |
| Ripple Current @ High Frequency | 3.15A @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
