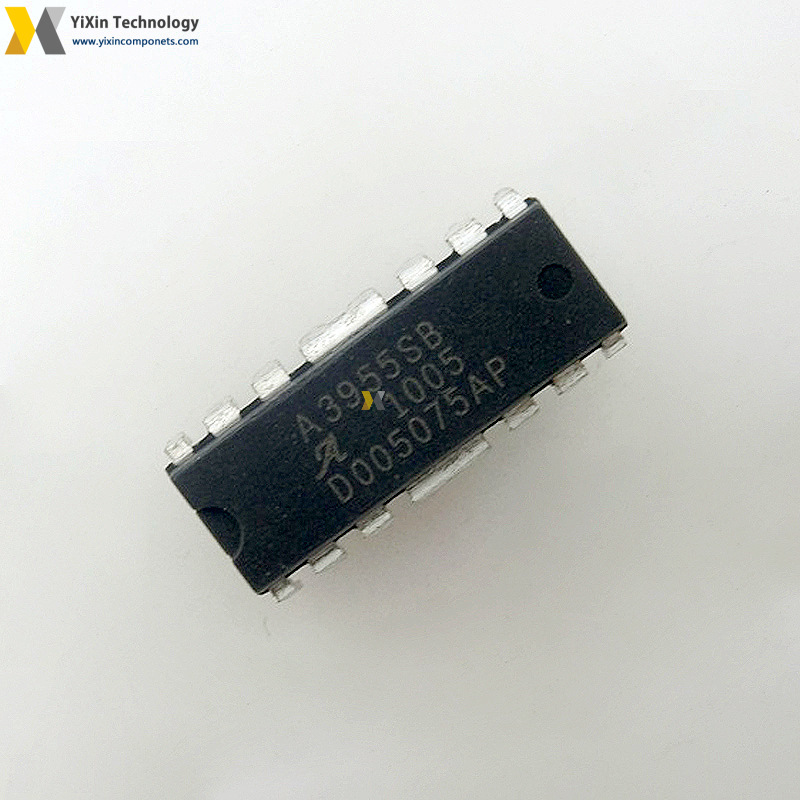

A3955SB
Part Number | A3955SB |
Manufacturer | Allegro MicroSystems, LLC |
Category | Power Management ICs |
Description | IC MTR DRV BIPOLR 4.5-5.5V 16DIP |
A3955SB Specifications
RoHS | No RoHS Information |
EDA/CAD Models | A3955SB PCB Footprint and Symbol |
Warranty | Up to 1 year [Limited-Warranty]* |
Brand | Allegro MicroSystems, LLC |
Product Line | Semiconductors |
Subcategory | Motor Drivers, Controllers |
Series | - |
Motor Type - Stepper | Bipolar |
Motor Type - AC, DC | - |
Function | Driver - Fully Integrated, Control and Power Stage |
Output Configuration | Half Bridge (2) |
Interface | Parallel |
Technology | Bipolar |
Step Resolution | 1, 1/2, 1/4, 1/8 |
Applications | General Purpose |
Current - Output | 1.5A |
Voltage - Supply | 4.5V ~ 5.5V |
Voltage - Load | 4.5V ~ 50V |
Operating Temperature | -20°C ~ 150°C (TJ) |
Mounting Type | Through Hole |
Package / Case | 16-PowerDIP (0.300", 7.62mm) |
Supplier Device Package | 16-DIP |
Quick Inquiry
In Stock | 216 - More on Order |
Quote Limit | No Limit |
Lead-Time | To be Confirmed |
Minimum | 1 |
