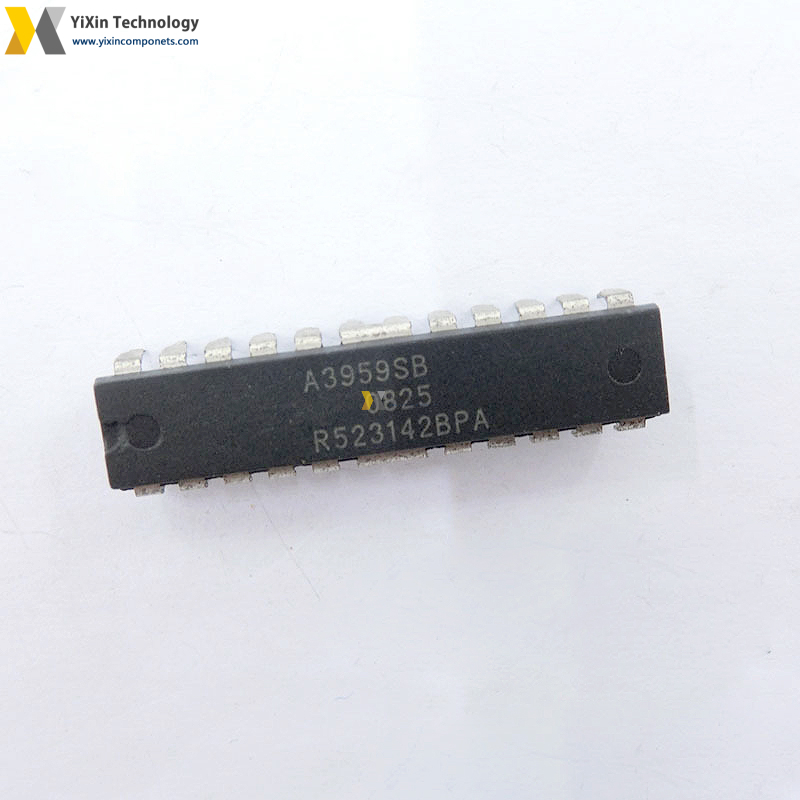

A3959SB
| Part Number | A3959SB |
| Manufacturer | Allegro MicroSystems, LLC |
| Category | Power Management ICs |
| Description | IC MOTOR DRIVER 4.5V-5.5V 24DIP |
A3959SB Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | A3959SB PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Allegro MicroSystems, LLC |
| Product Line | Semiconductors |
| Subcategory | Motor Drivers, Controllers |
| Series | - |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 9.5V ~ 50V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 24-PowerDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-DIP |
