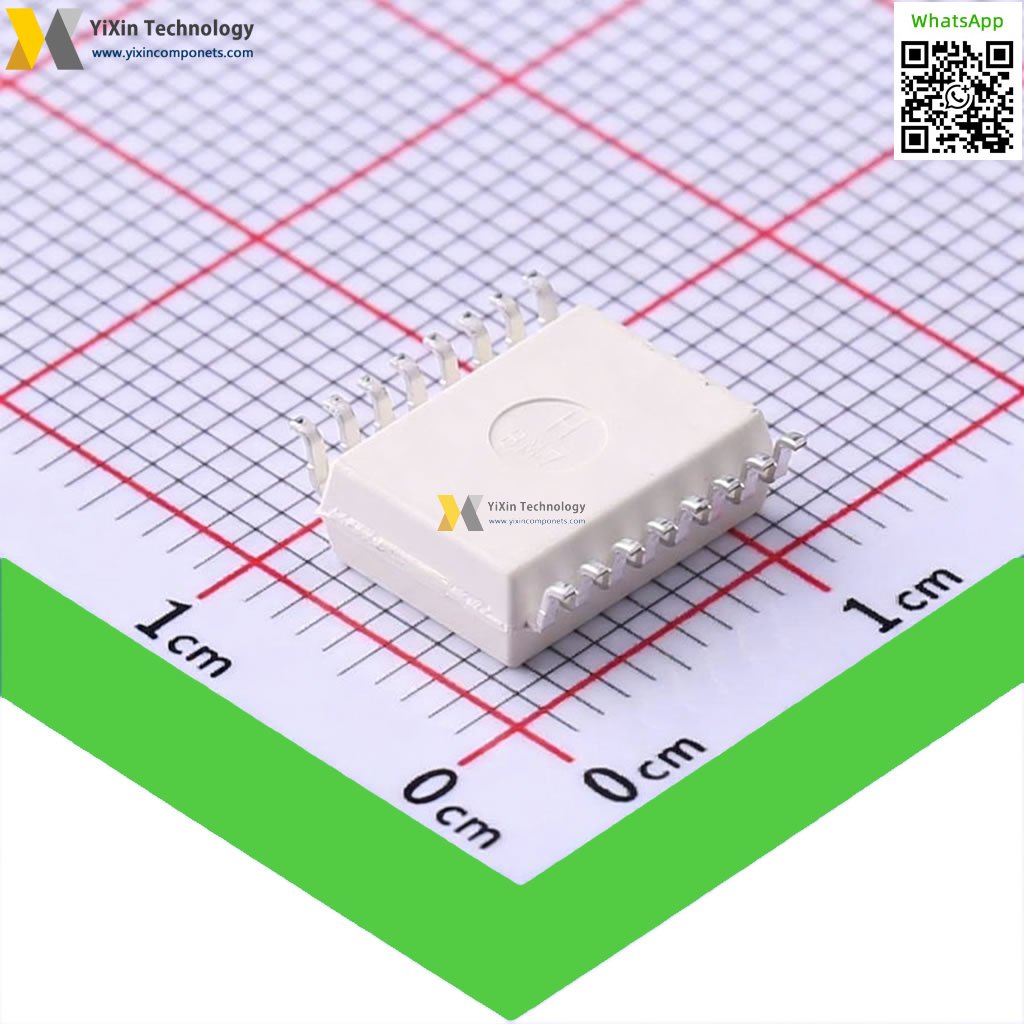

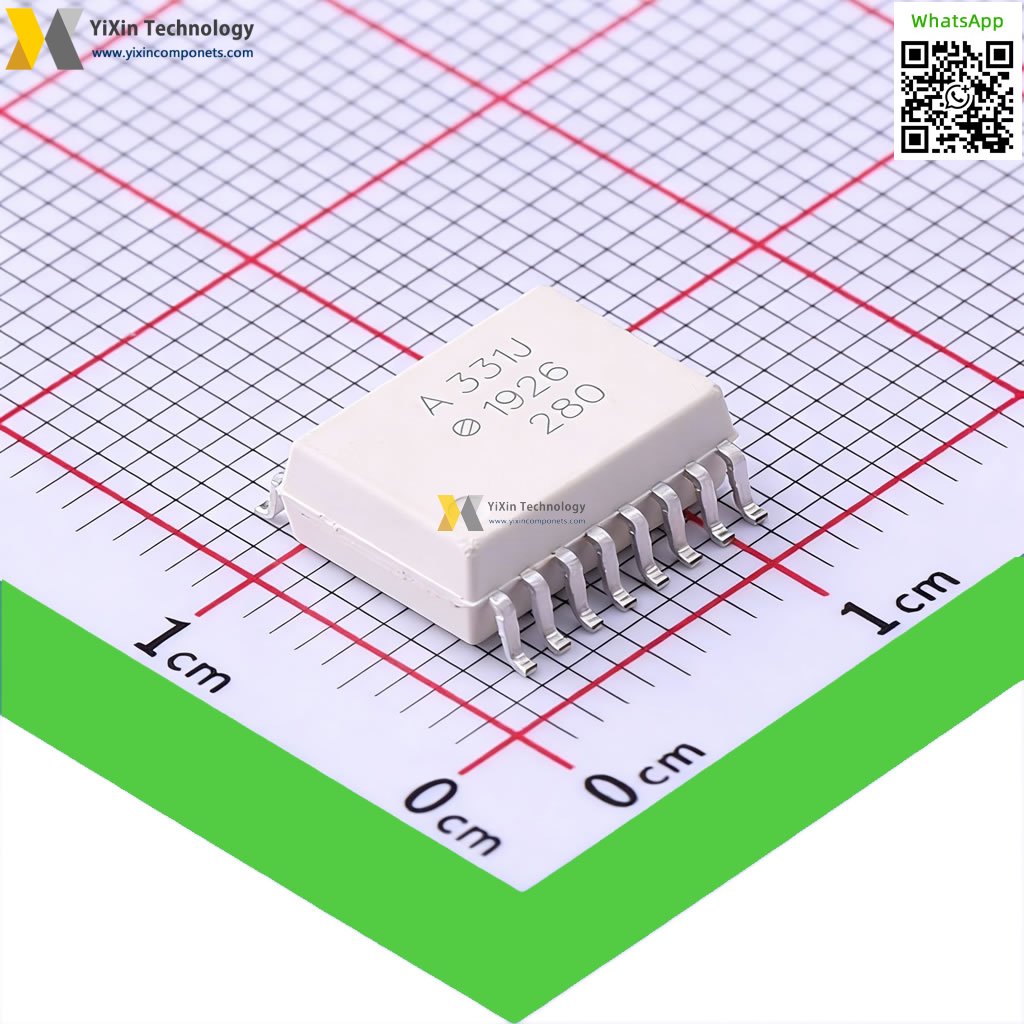

ACPL-331J-500E
| Part Number | ACPL-331J-500E |
| Manufacturer | Broadcom |
| Category | Isolators |
| Description | OPTOISO 5KV 1CH GATE DRIVER 16SO |
ACPL-331J-500E Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | ACPL-331J-500E PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Broadcom |
| Product Line | Semiconductors |
| Subcategory | Isolators - Gate Drivers |
| Series | - |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Pulse Width Distortion (Max) | 100ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Current - Output High, Low | 1A, 1A |
| Current - Peak Output | 1.5A |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Output Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SO |
| Approvals | CSA, IEC/EN/DIN, UR |
