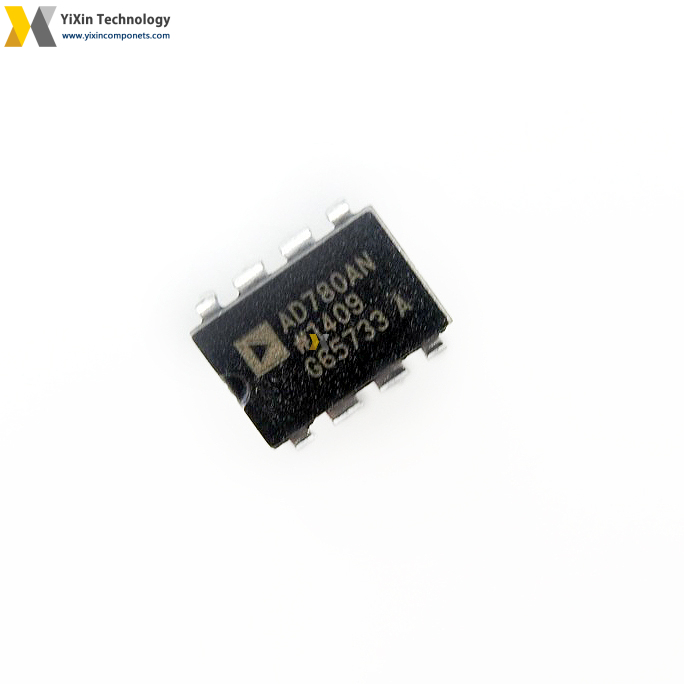

AD780AN
| Part Number | AD780AN |
| Manufacturer | Analog Devices |
| Category | Power Management ICs |
| Description | IC VREF SERIES/SHUNT PROG 8DIP |
AD780AN Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | AD780AN PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Analog Devices |
| Product Line | Semiconductors |
| Subcategory | Voltage Reference |
| Series | - |
| Reference Type | Series, Shunt |
| Output Type | Programmable |
| Voltage - Output (Min/Fixed) | ±2.5V, ±3V |
| Voltage - Output (Max) | - |
| Current - Output | 10mA |
| Tolerance | ±0.2%, ±0.17% |
| Temperature Coefficient | 7ppm/°C |
| Noise - 0.1Hz to 10Hz | 4µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 4V ~ 36V |
| Current - Supply | 1mA |
| Current - Cathode | 1mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
Quick Inquiry
| In Stock | 183 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
