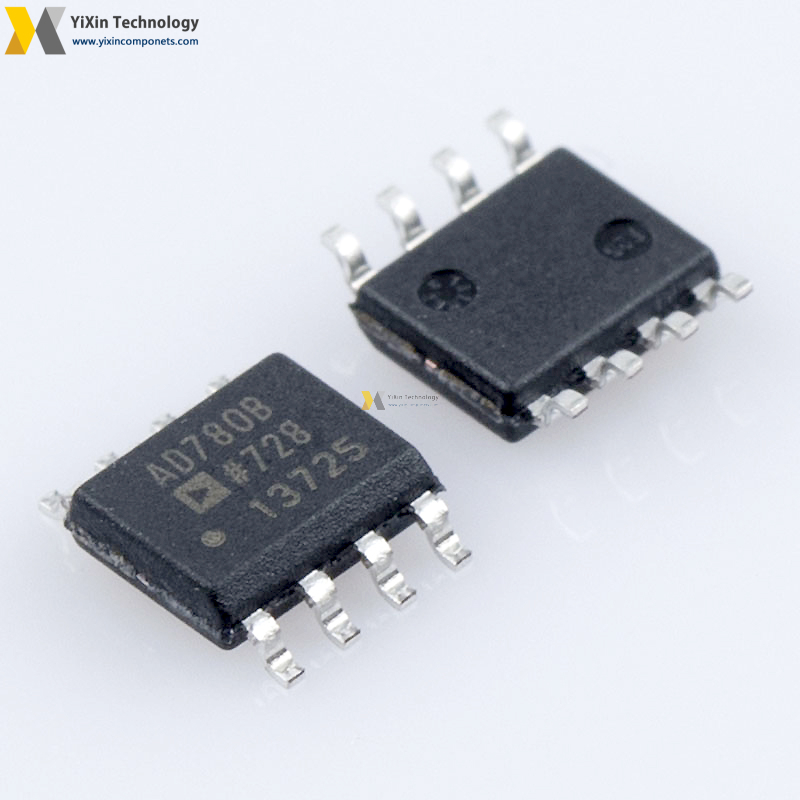

AD780BRZ
| Part Number | AD780BRZ |
| Manufacturer | Analog Devices |
| Category | Power Management ICs |
| Description | IC VREF SERIES/SHUNT PROG 8SOIC |
AD780BRZ Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | AD780BRZ PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Analog Devices |
| Product Line | Semiconductors |
| Subcategory | Voltage Reference |
| Series | - |
| Reference Type | Series, Shunt |
| Output Type | Programmable |
| Voltage - Output (Min/Fixed) | ±2.5V, ±3V |
| Voltage - Output (Max) | - |
| Current - Output | 10mA |
| Tolerance | ±0.04%, ±0.03% |
| Temperature Coefficient | 3ppm/°C |
| Noise - 0.1Hz to 10Hz | 4µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 4V ~ 36V |
| Current - Supply | 1mA |
| Current - Cathode | 1mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Quick Inquiry
| In Stock | 8915 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
