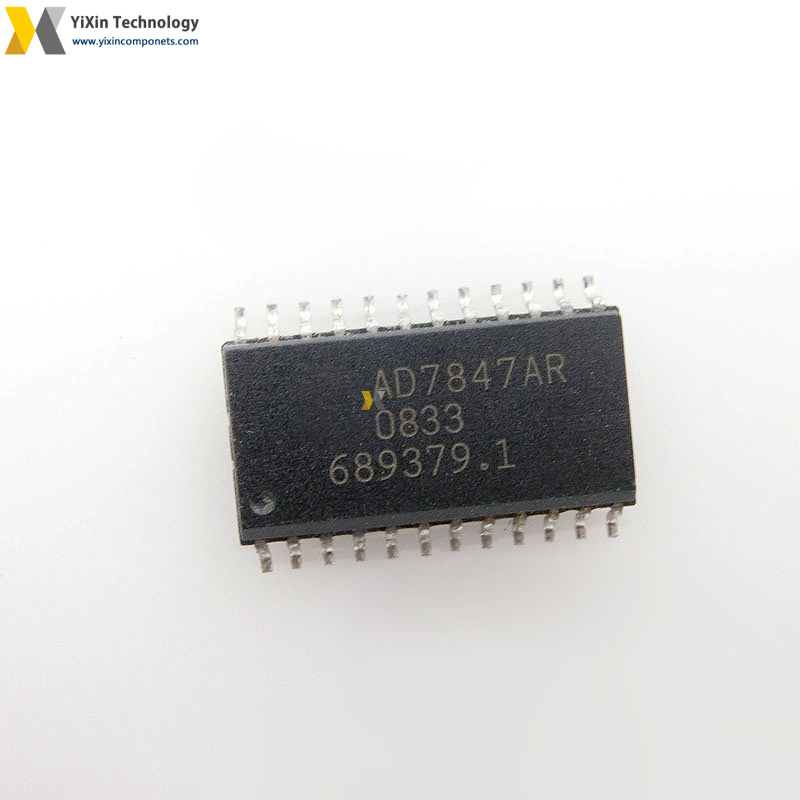

AD7847AR
| Part Number | AD7847AR |
| Manufacturer | Analog Devices |
| Category | Data Converter ICs |
| Description | IC DAC 12BIT V-OUT 24SOIC |
AD7847AR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | AD7847AR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Analog Devices |
| Product Line | Semiconductors |
| Subcategory | Digital to Analog Converters (DAC) |
| Series | - |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
