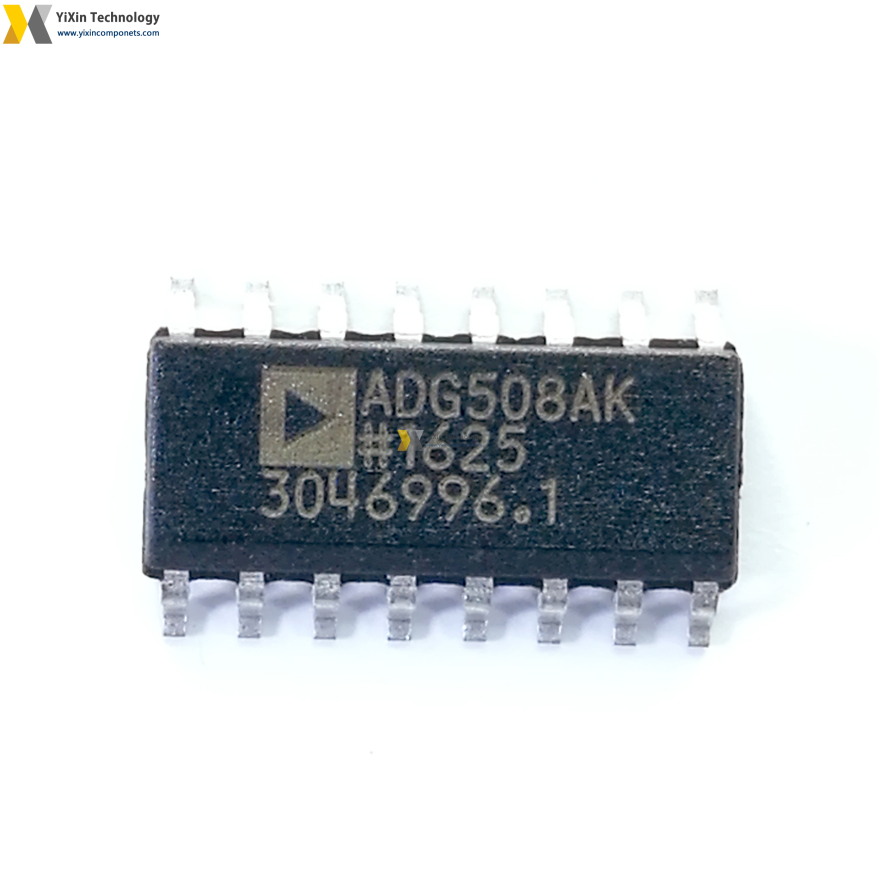

ADG508AKRZ-REEL7
| Part Number | ADG508AKRZ-REEL7 |
| Manufacturer | Analog Devices |
| Category | Interface ICs |
| Description | IC MULTIPLEXER 8X1 16SOIC |
ADG508AKRZ-REEL7 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | ADG508AKRZ-REEL7 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Analog Devices |
| Product Line | Semiconductors |
| Subcategory | Analog Switches, Multiplexers, Demultiplexers |
| Series | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
