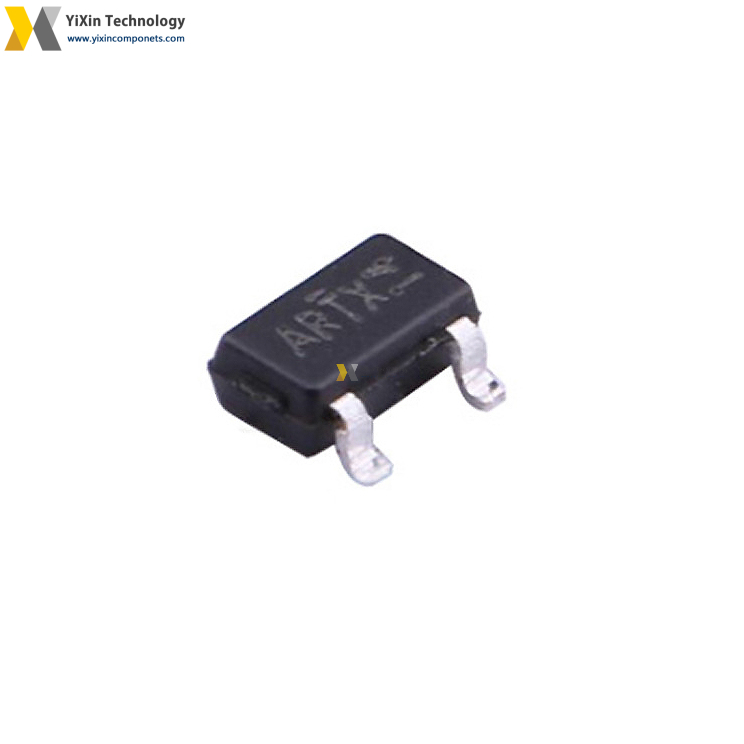

AO3422
| Part Number | AO3422 |
| Manufacturer | Alpha & Omega Semiconductor |
| Category | Transistors |
| Description | MOSFET N-CH 55V 2.1A SOT23 |
AO3422 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | AO3422 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Alpha & Omega Semiconductor |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | - |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 2.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 2.1A, 4.5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.3nC @ 4.5V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 300pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3L |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Quick Inquiry
| In Stock | 818417 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
