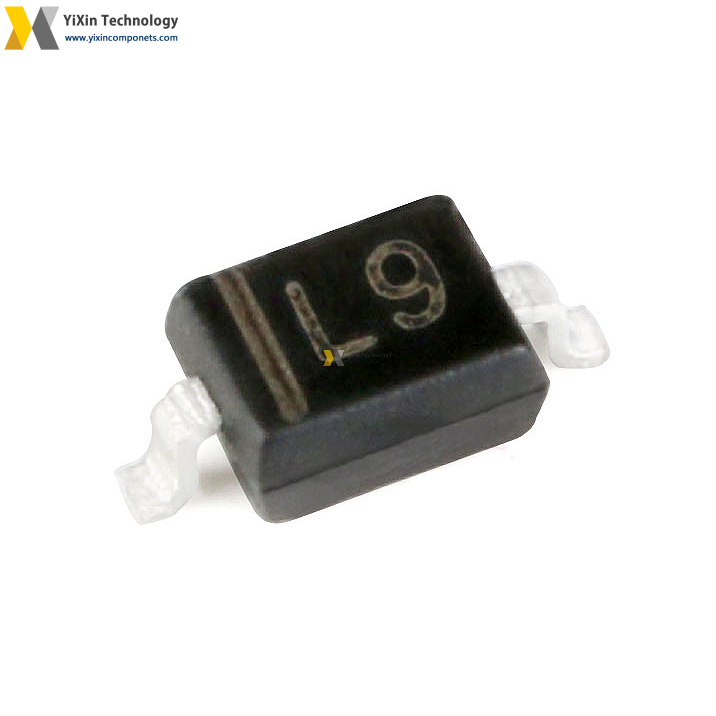

BAT54WS-7-F
| Part Number | BAT54WS-7-F |
| Manufacturer | Diodes Incorporated |
| Category | Diodes & Rectifiers |
| Description | DIODE SCHOTTKY 30V 100MA SOD323 |
BAT54WS-7-F Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | BAT54WS-7-F PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Diodes Incorporated |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | - |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 100mA |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5ns |
| Current - Reverse Leakage @ Vr | 2µA @ 25V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -65°C ~ 150°C |
Quick Inquiry
| In Stock | 403531 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
