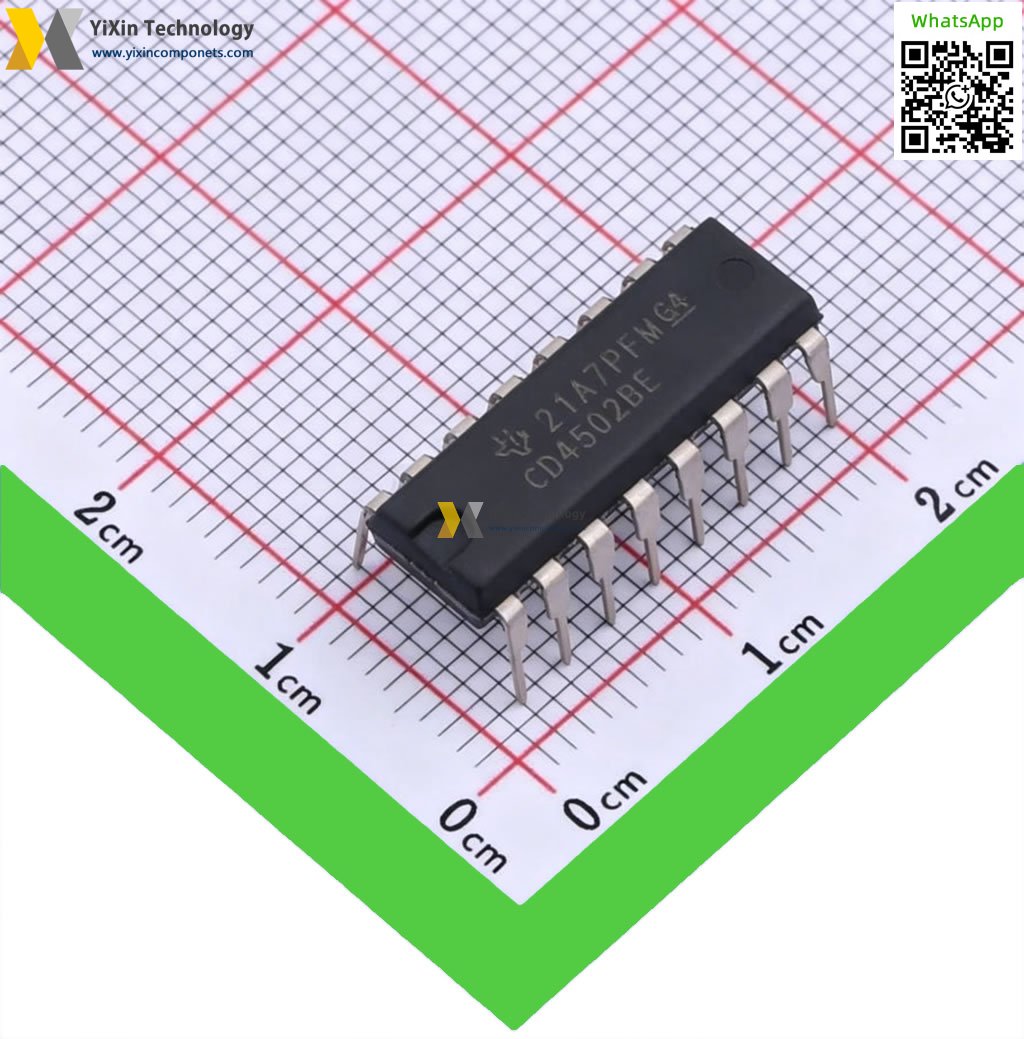

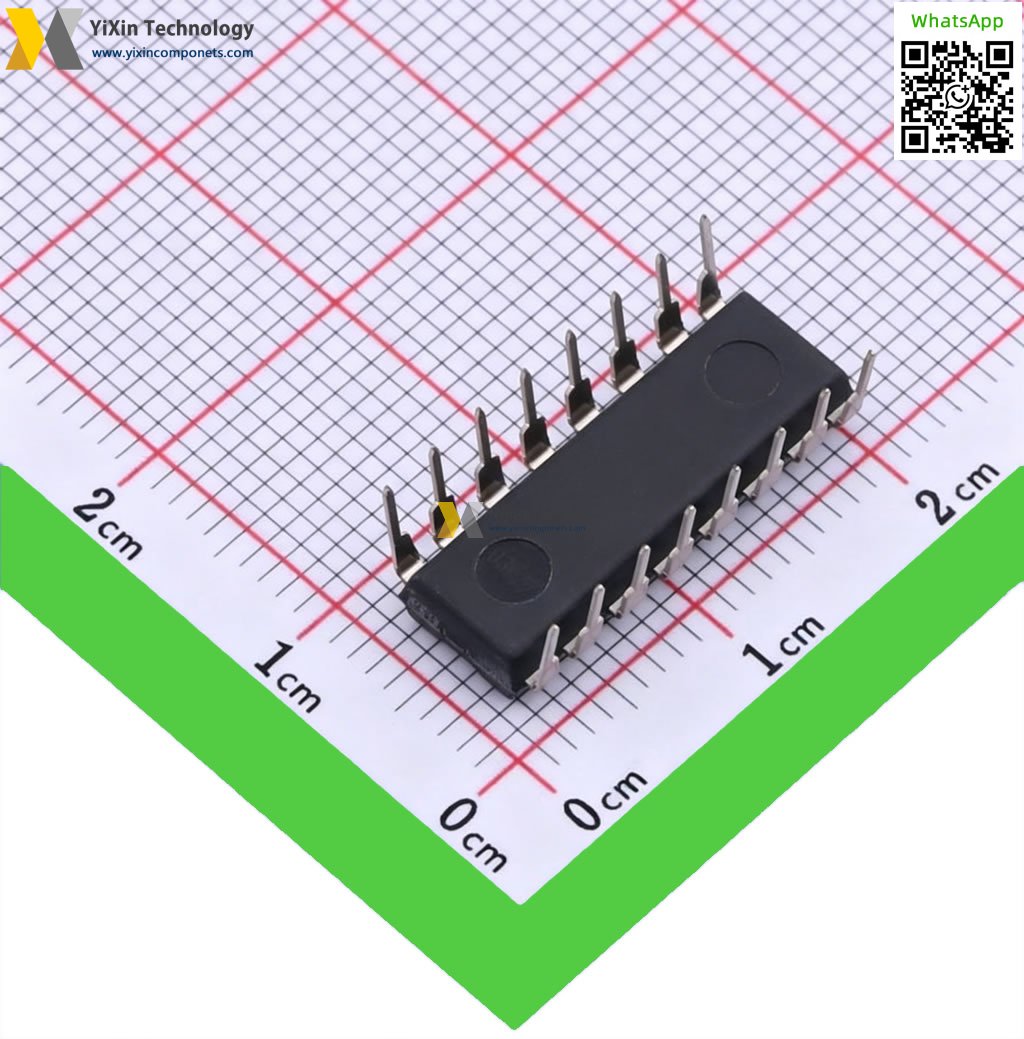

CD4502BE
| Part Number | CD4502BE |
| Manufacturer | Texas Instruments |
| Category | Logic ICs |
| Description | IC BUFFER INVERT 18 V 16DIP |
CD4502BE Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | CD4502BE PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Buffers, Drivers, Receivers, Transceivers |
| Series | 4000B |
| Logic Type | Buffer, Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 3.4mA, 20.4mA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
