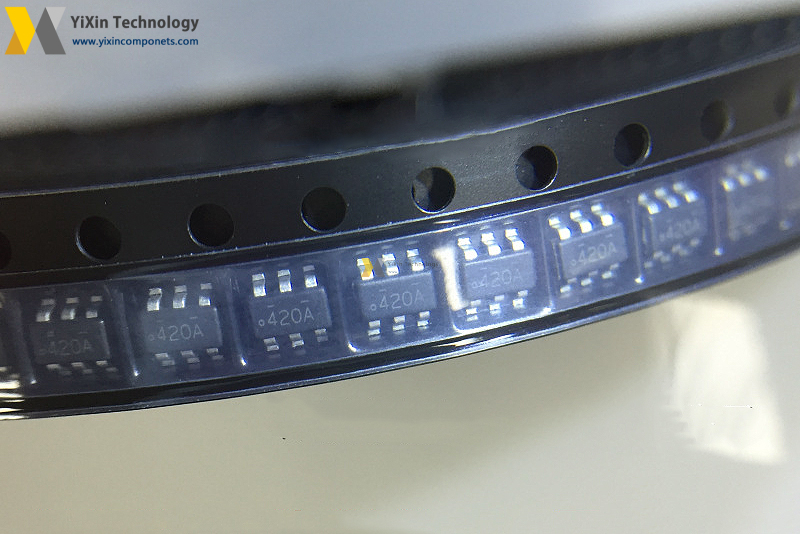

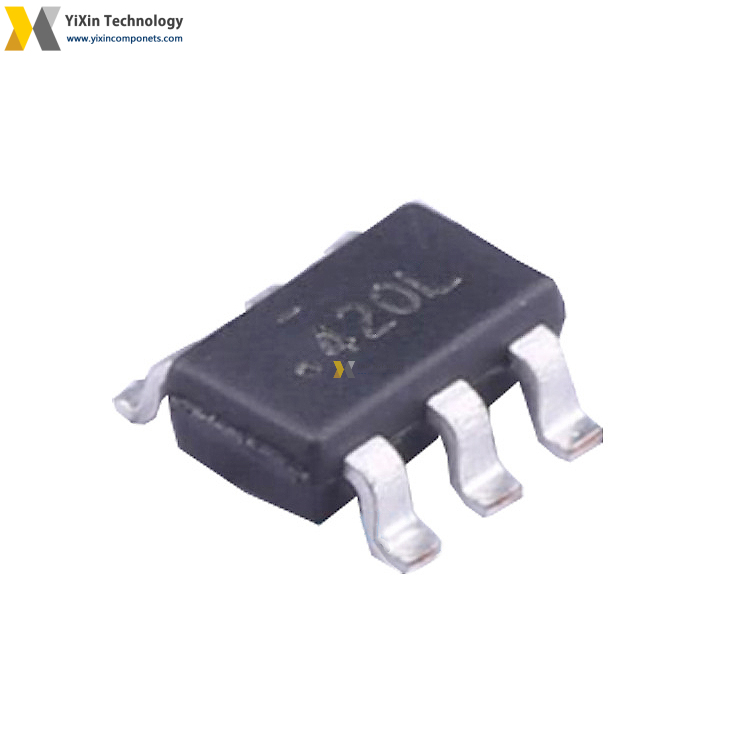

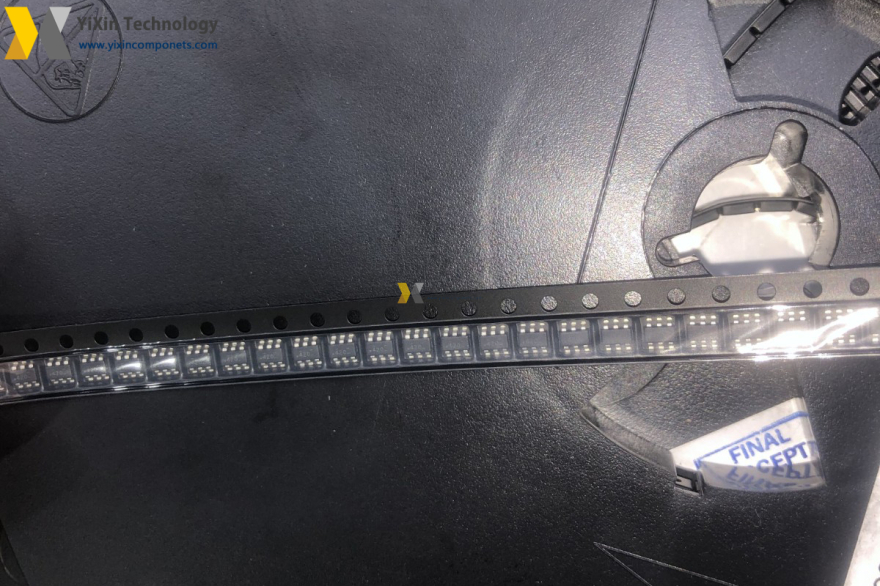

FDC6420C

Part Number
FDC6420C
Manufacturer
ON Semiconductor
Category
Transistors
Description
MOSFET N/P-CH 20V 3A/2.2A SSOT-6
FDC6420C Specifications
RoHS No RoHS Information
EDA/CAD Models FDC6420C PCB Footprint and Symbol
Warranty Up to 1 year [Limited-Warranty]*
Brand ON Semiconductor
Product Line Semiconductors
Subcategory FETs, MOSFETs - Arrays
Series PowerTrench®
FET Type N and P-Channel
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 3A, 2.2A
Rds On (Max) @ Id, Vgs 70mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 324pF @ 10V
Power - Max 700mW
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-6 Thin, TSOT-23-6
Supplier Device Package SuperSOT™-6
Quick Inquiry
In Stock58997 - More on Order
Quote LimitNo Limit
Lead-TimeTo be Confirmed
Minimum1
