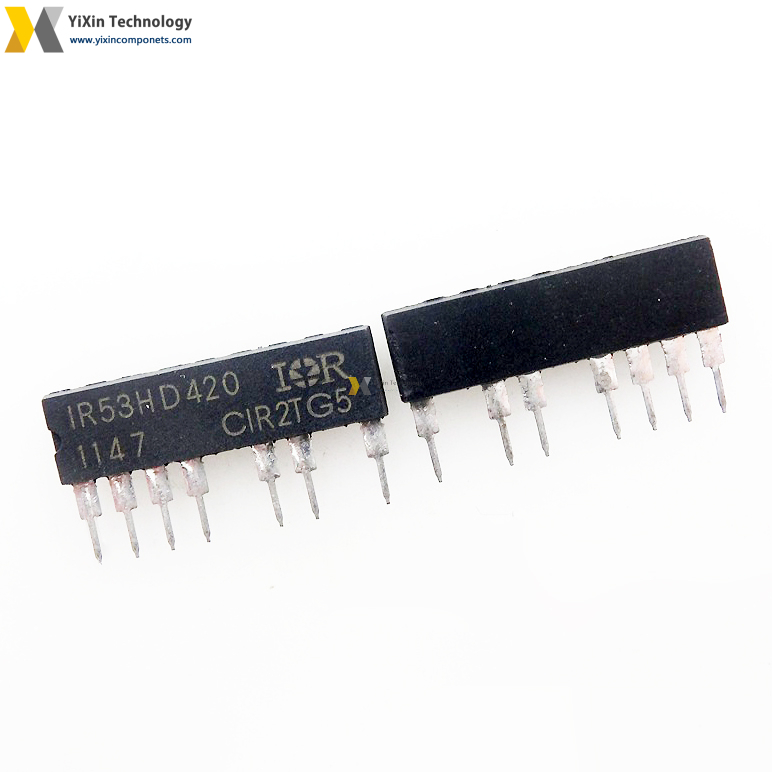

IR53HD420
| Part Number | IR53HD420 |
| Manufacturer | Infineon Technologies |
| Category | Power Management ICs |
| Description | IC HALF BRIDGE SELF-OSC 9-SIP |
IR53HD420 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | IR53HD420 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Infineon Technologies |
| Product Line | Semiconductors |
| Subcategory | Full, Half-Bridge Drivers |
| Series | - |
| Output Configuration | Half Bridge |
| Applications | AC Motors |
| Interface | On/Off |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 3Ohm |
| Current - Output / Channel | 700mA |
| Current - Peak Output | - |
| Voltage - Supply | 10V ~ 15.6V |
| Voltage - Load | 500V (Max) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Internal Oscillator |
| Fault Protection | UVLO |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP, 7 Leads |
| Supplier Device Package | 9-SIP, 7 Leads |
