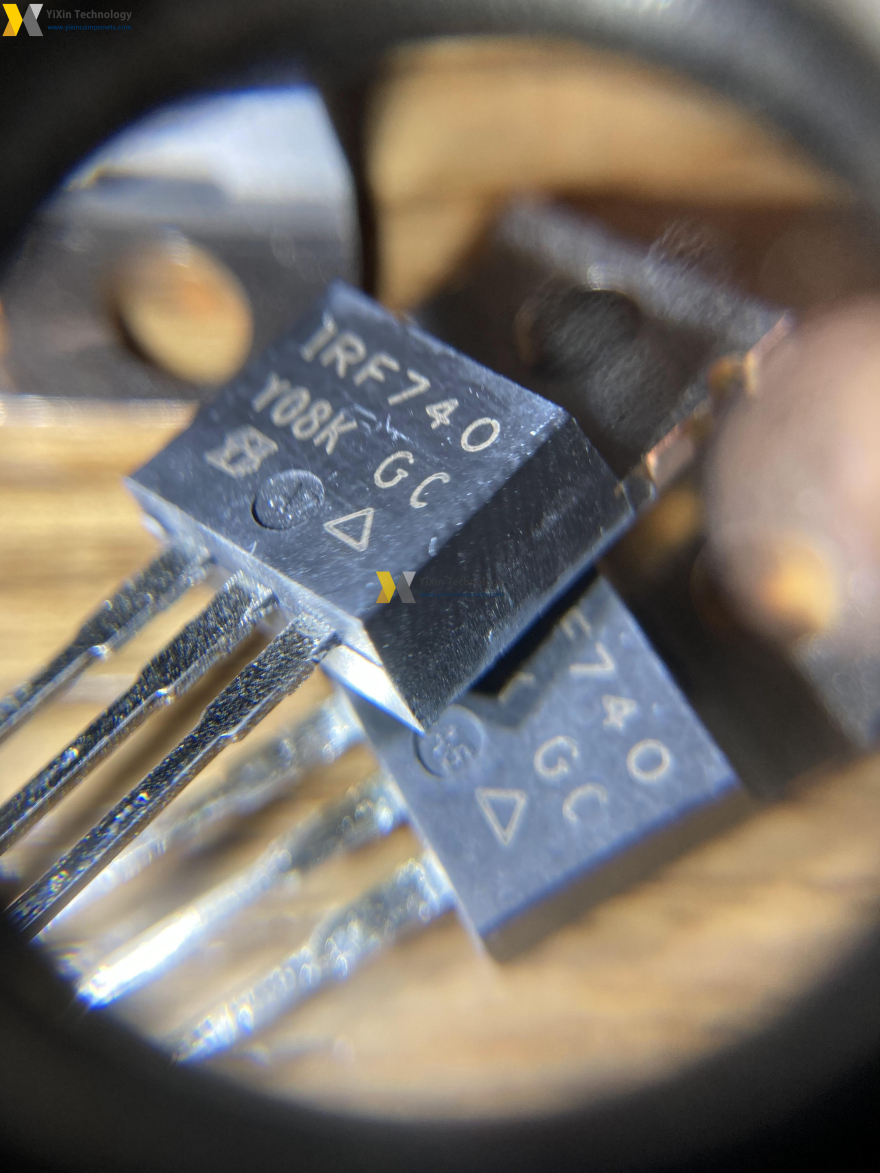

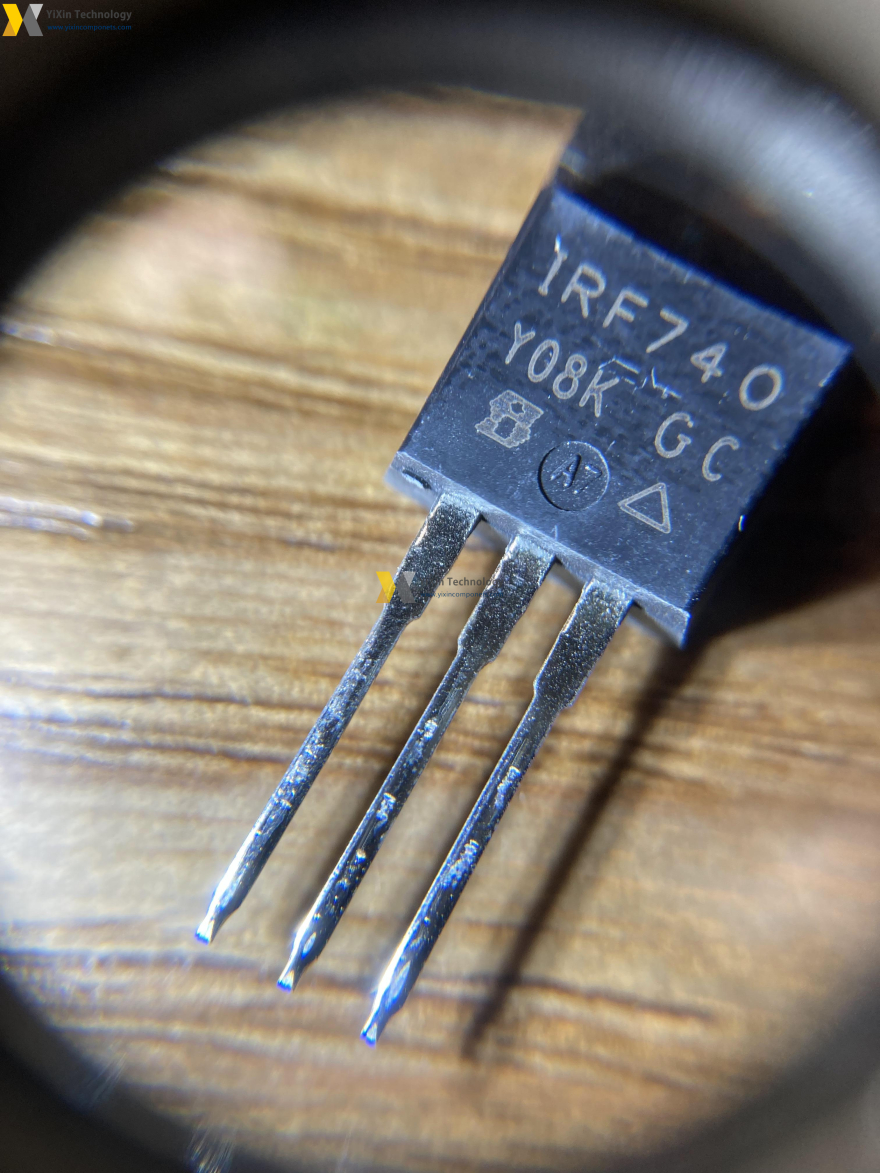

IRF740PBF
| Part Number | IRF740PBF |
| Manufacturer | Vishay Siliconix |
| Category | Transistors |
| Description | MOSFET N-CH 400V 10A TO-220AB |
IRF740PBF Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | IRF740PBF PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Vishay Siliconix |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | - |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 400V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 63nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Quick Inquiry
| In Stock | 2604 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
