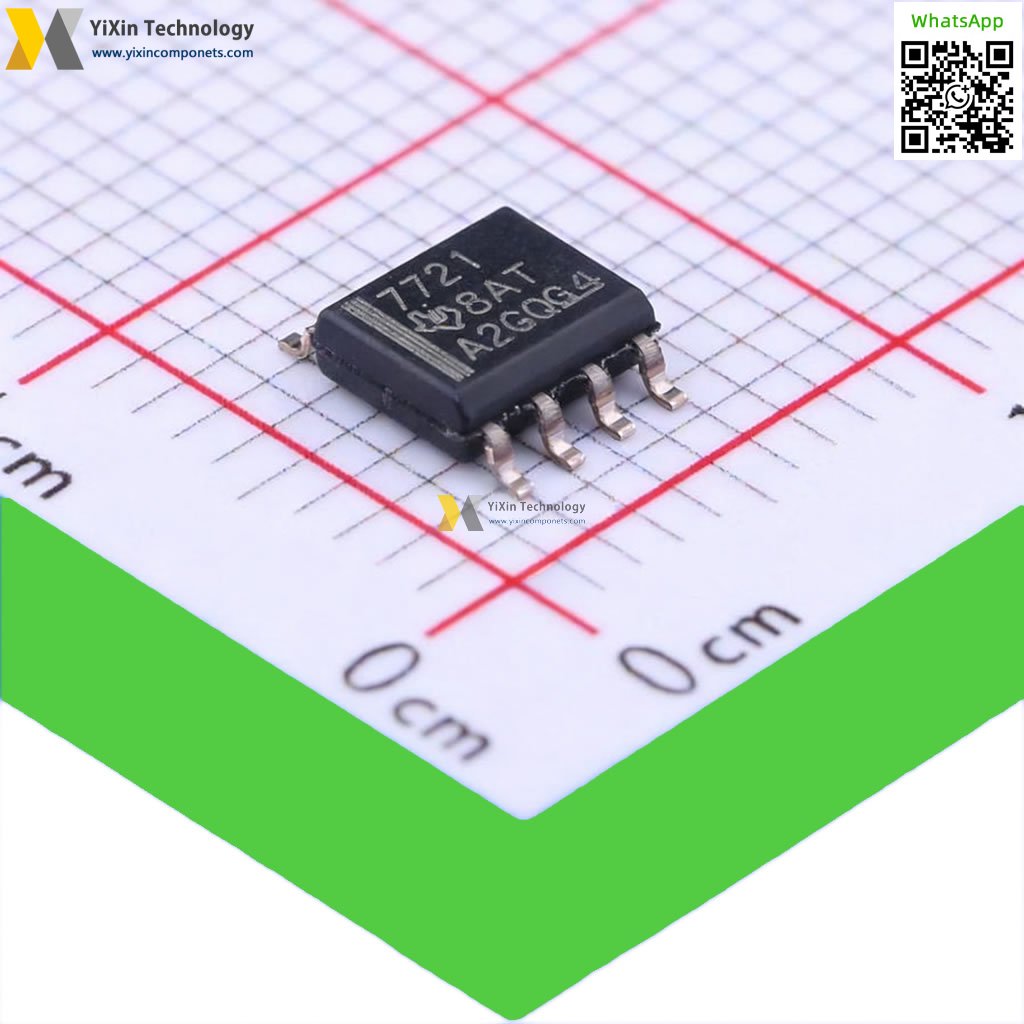

ISO7721DR

Part Number
ISO7721DR
Manufacturer
Texas Instruments
Category
Isolators
Description
DGTL ISO 3KV GEN PRP 8SOIC
ISO7721DR Specifications
RoHS No RoHS Information
EDA/CAD Models ISO7721DR PCB Footprint and Symbol
Warranty Up to 1 year [Limited-Warranty]*
Brand Texas Instruments
Product Line Semiconductors
Subcategory Digital Isolators
Series -
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Voltage - Isolation 3000Vrms
Common Mode Transient Immunity (Min) 85kV/µs
Data Rate 100Mbps
Propagation Delay tpLH / tpHL (Max) 16ns, 16ns
Pulse Width Distortion (Max) 4.9ns
Rise / Fall Time (Typ) 1.8ns, 1.9ns
Voltage - Supply 2.25V ~ 5.5V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
