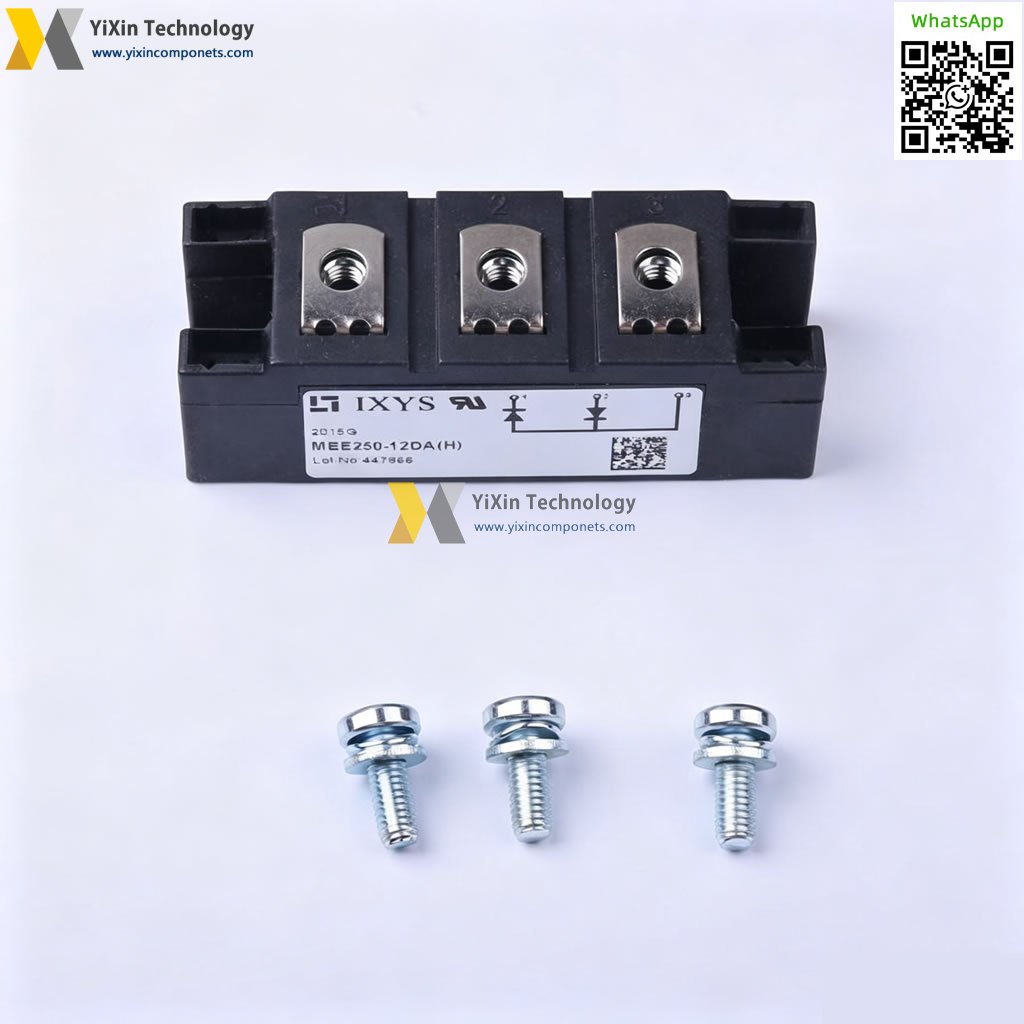

MEE250-12DA
| Part Number | MEE250-12DA |
| Manufacturer | IXYS |
| Category | Diodes & Rectifiers |
| Description | DIODE MODULE 1.2KV 260A Y4-M6 |
MEE250-12DA Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | MEE250-12DA PCB Footprint and Symbol |
| Brand | IXYS |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Arrays |
| Series | FRED |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200V |
| Current - Average Rectified (Io) (per Diode) | 260A |
| Voltage - Forward (Vf) (Max) @ If | 1.8V @ 260A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500ns |
| Current - Reverse Leakage @ Vr | 12mA @ 1200V |
| Operating Temperature - Junction | - |
| Mounting Type | Chassis Mount |
| Package / Case | Y4-M6 |
| Supplier Device Package | Y4-M6 |
