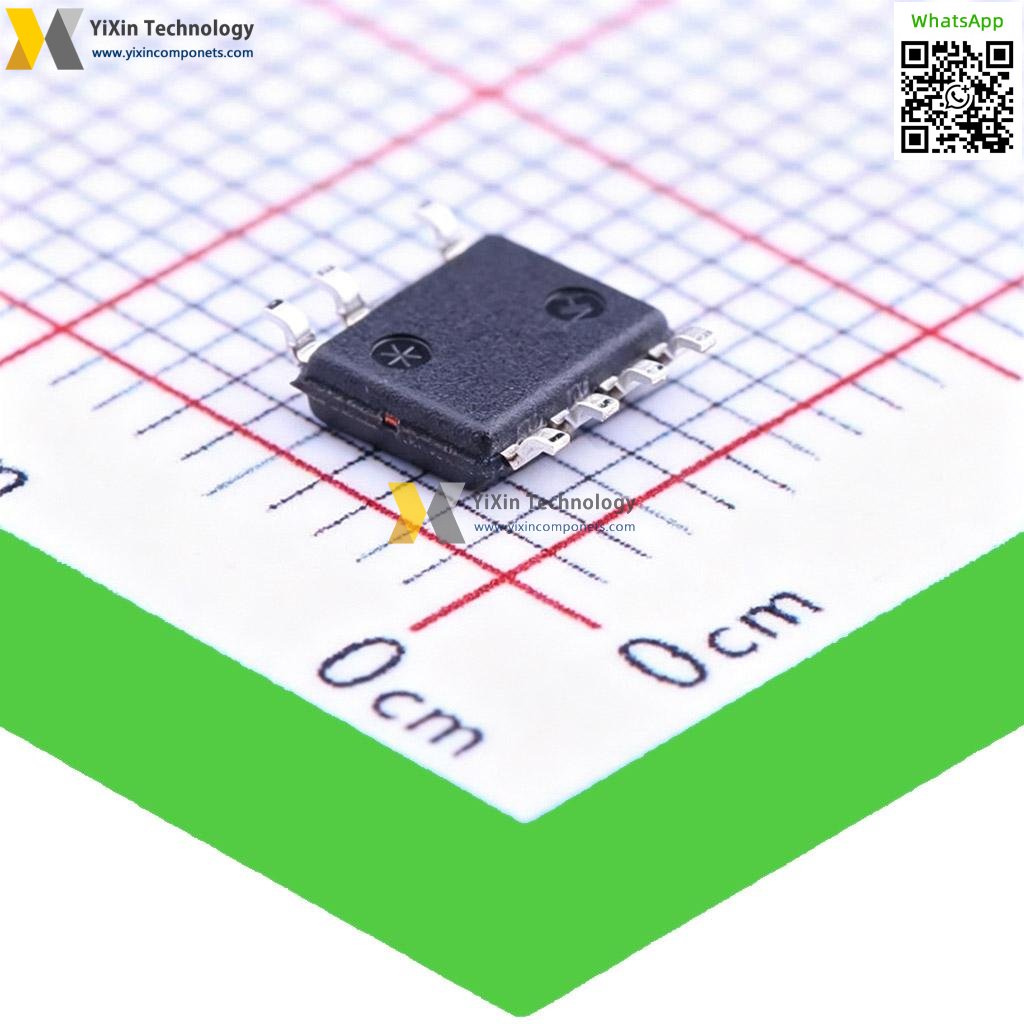

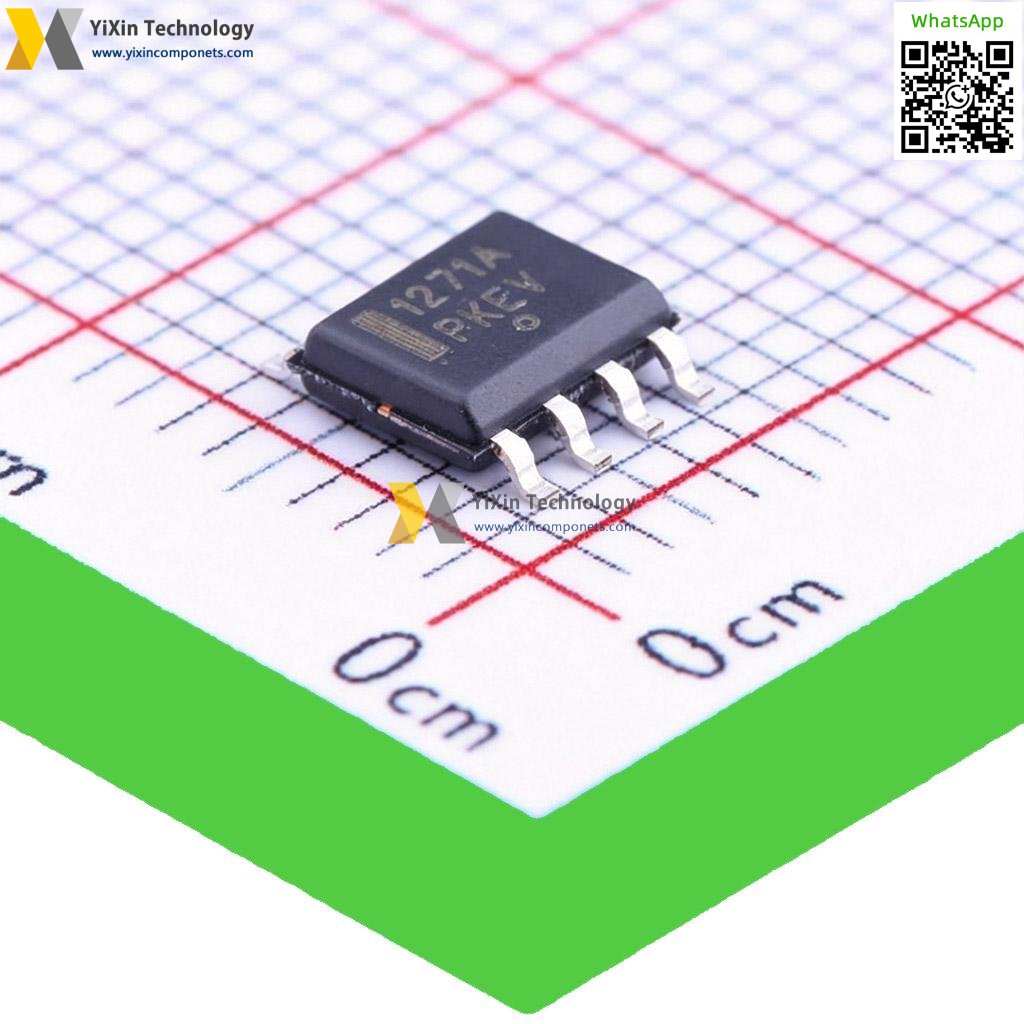

NCP1271D65R2G
| Part Number | NCP1271D65R2G |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC CTLR PWM CM OVP OTP HV 7SOIC |
NCP1271D65R2G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NCP1271D65R2G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | Soft-Skip™ |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12.6V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 20V |
| Duty Cycle | 80% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Mounting Type | Surface Mount |
