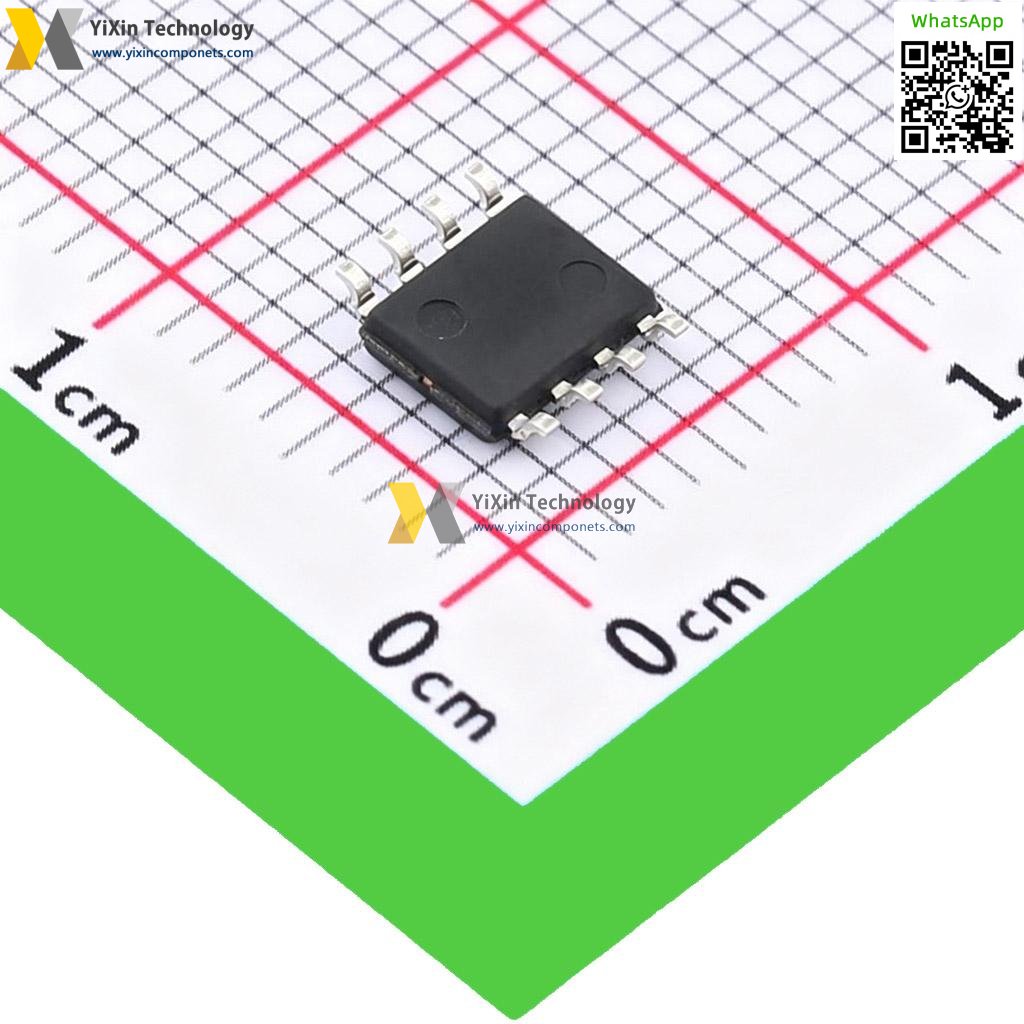

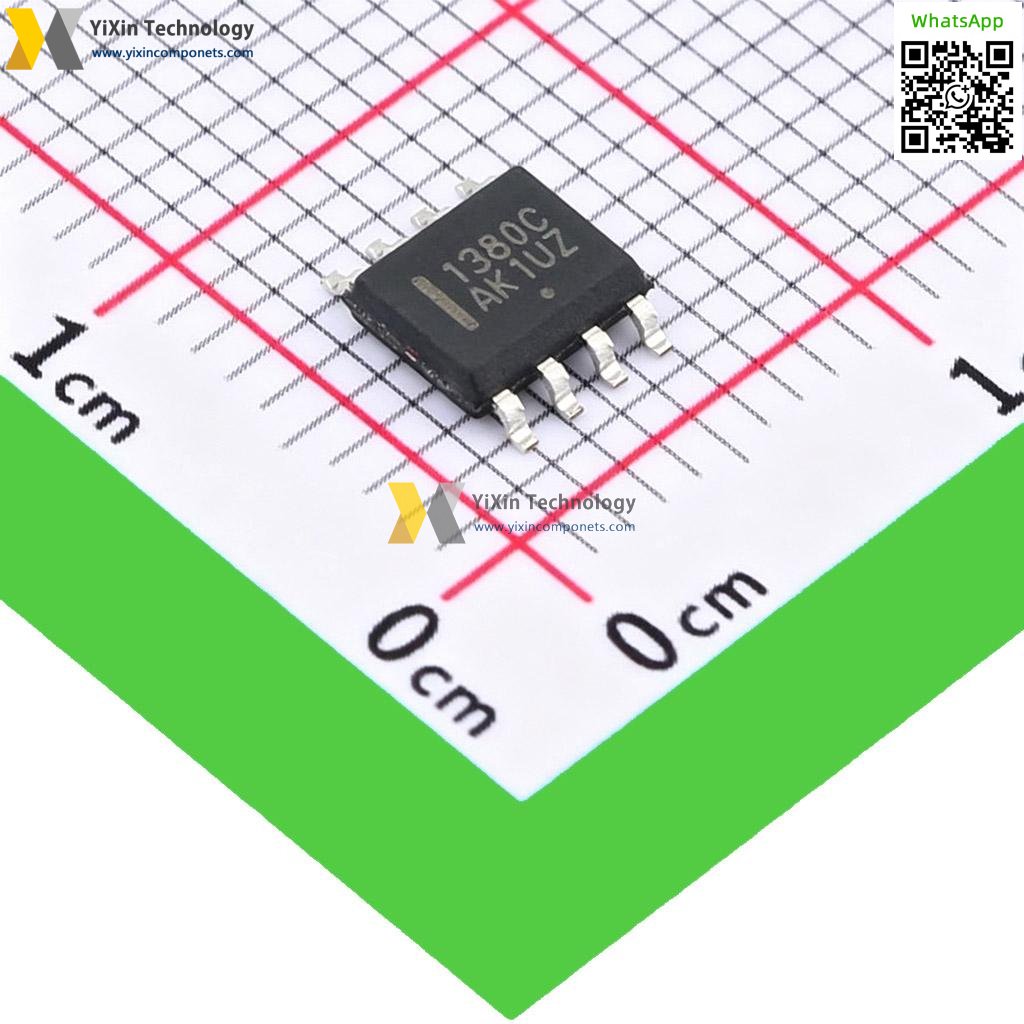

NCP1380CDR2G
| Part Number | NCP1380CDR2G |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC REG CTRLR FLYBK ISO PWM 8SOIC |
NCP1380CDR2G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NCP1380CDR2G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | - |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 17V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 28V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
