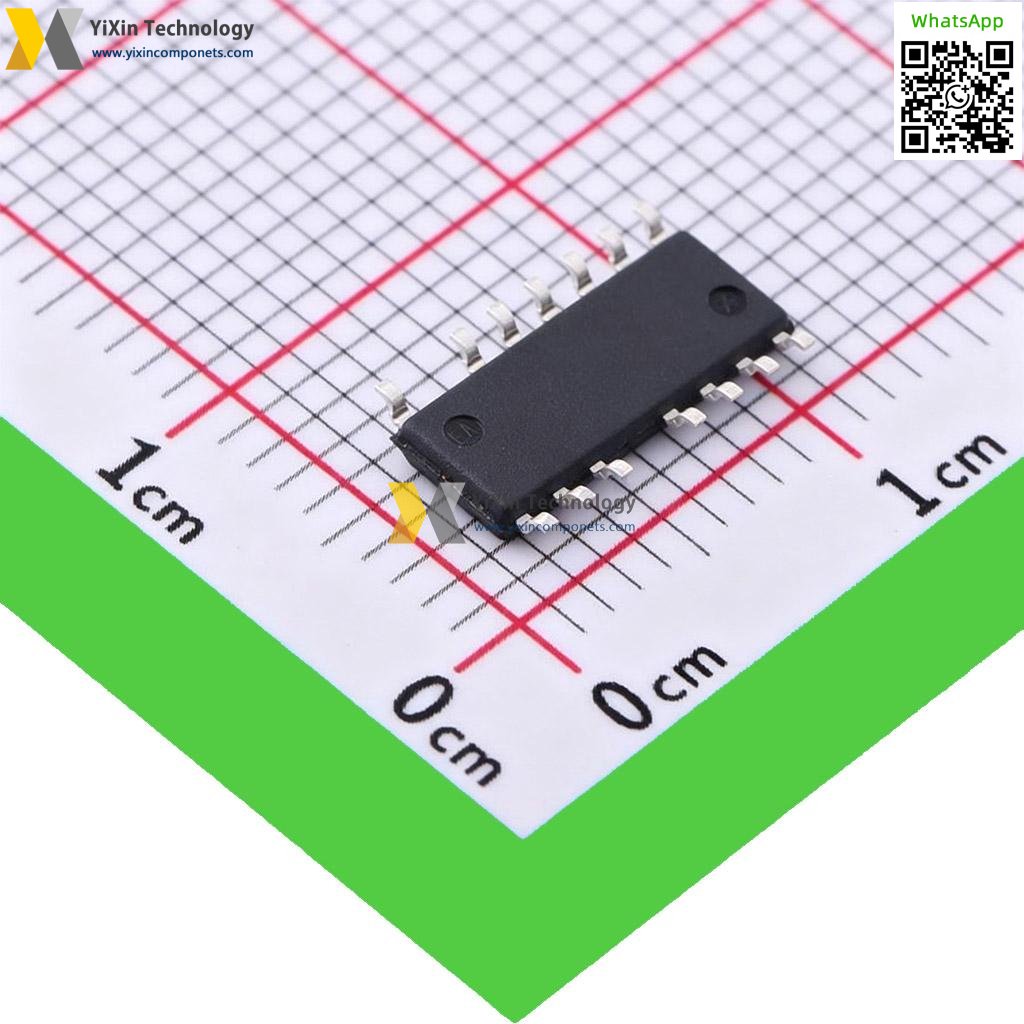

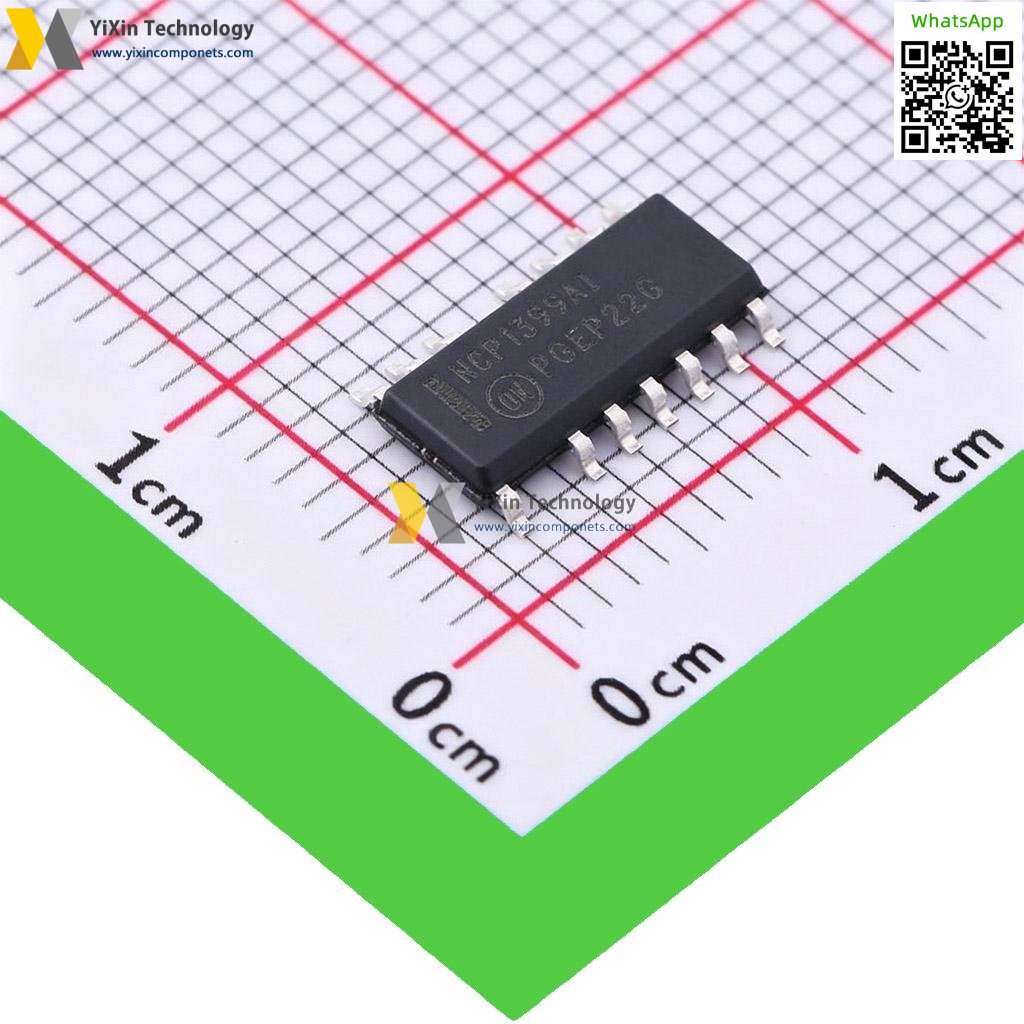

NCP1399AIDR2G
| Part Number | NCP1399AIDR2G |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC OFFLN CONV HALF-BRIDGE 16SOIC |
NCP1399AIDR2G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NCP1399AIDR2G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | NCP1399 |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 600V |
| Topology | Half-Bridge |
| Voltage - Start Up | 15.8V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 60V |
| Duty Cycle | 50% |
| Frequency - Switching | 20kHz ~ 750kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
