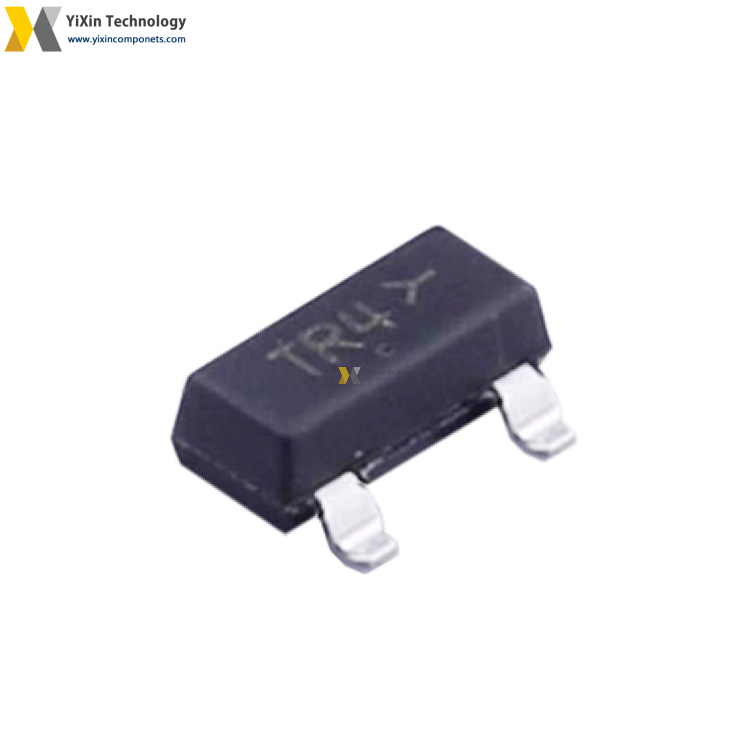

NTR4101PT1G
| Part Number | NTR4101PT1G |
| Manufacturer | ON Semiconductor |
| Category | Transistors |
| Description | MOSFET P-CH 20V 1.8A SOT-23 |
NTR4101PT1G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NTR4101PT1G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | - |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 1.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.5nC @ 4.5V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 675pF @ 10V |
| FET Feature | - |
| Power Dissipation (Max) | 420mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Quick Inquiry
| In Stock | 118533 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
