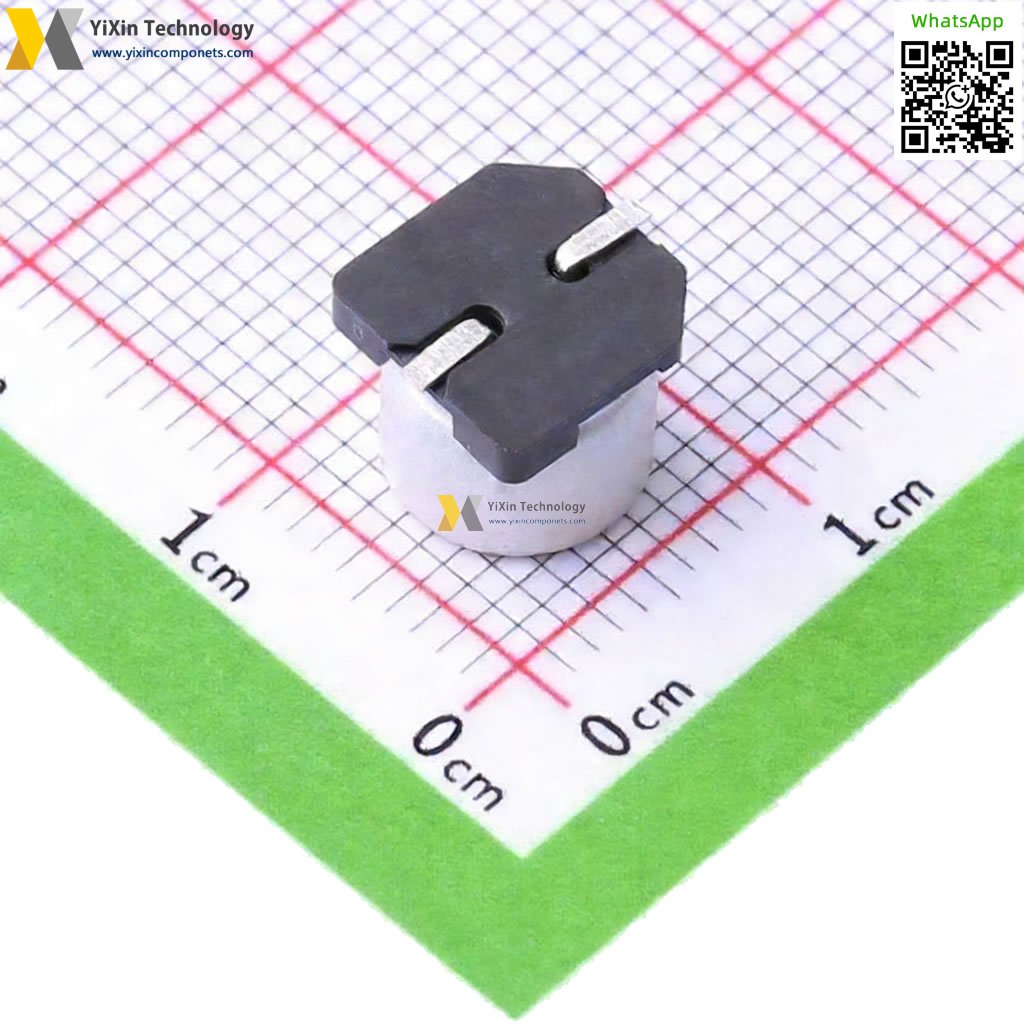

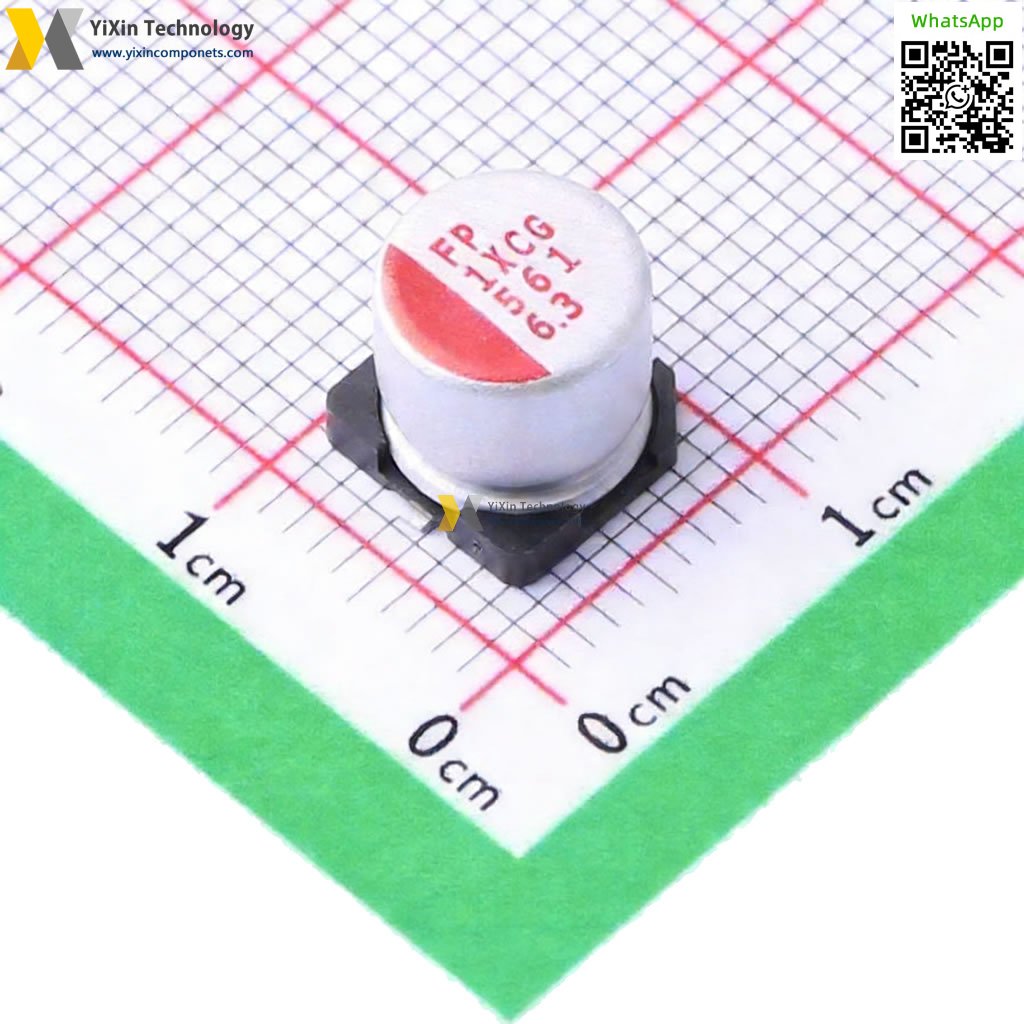

RHA0J561MCN1GS
| Part Number | RHA0J561MCN1GS |
| Manufacturer | Nichicon |
| Category | Capacitors |
| Description | CAP ALUM POLY 560UF 20% 6.3V SMD |
RHA0J561MCN1GS Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | RHA0J561MCN1GS PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Nichicon |
| Product Line | Passive Components |
| Subcategory | Aluminum Polymer Capacitors |
| Series | FPCAP, RHA |
| Type | Polymer |
| Capacitance | 560µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | 9 mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450mA @ 120Hz |
| Ripple Current @ High Frequency | 4.5A @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Quick Inquiry
| In Stock | 47534 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
