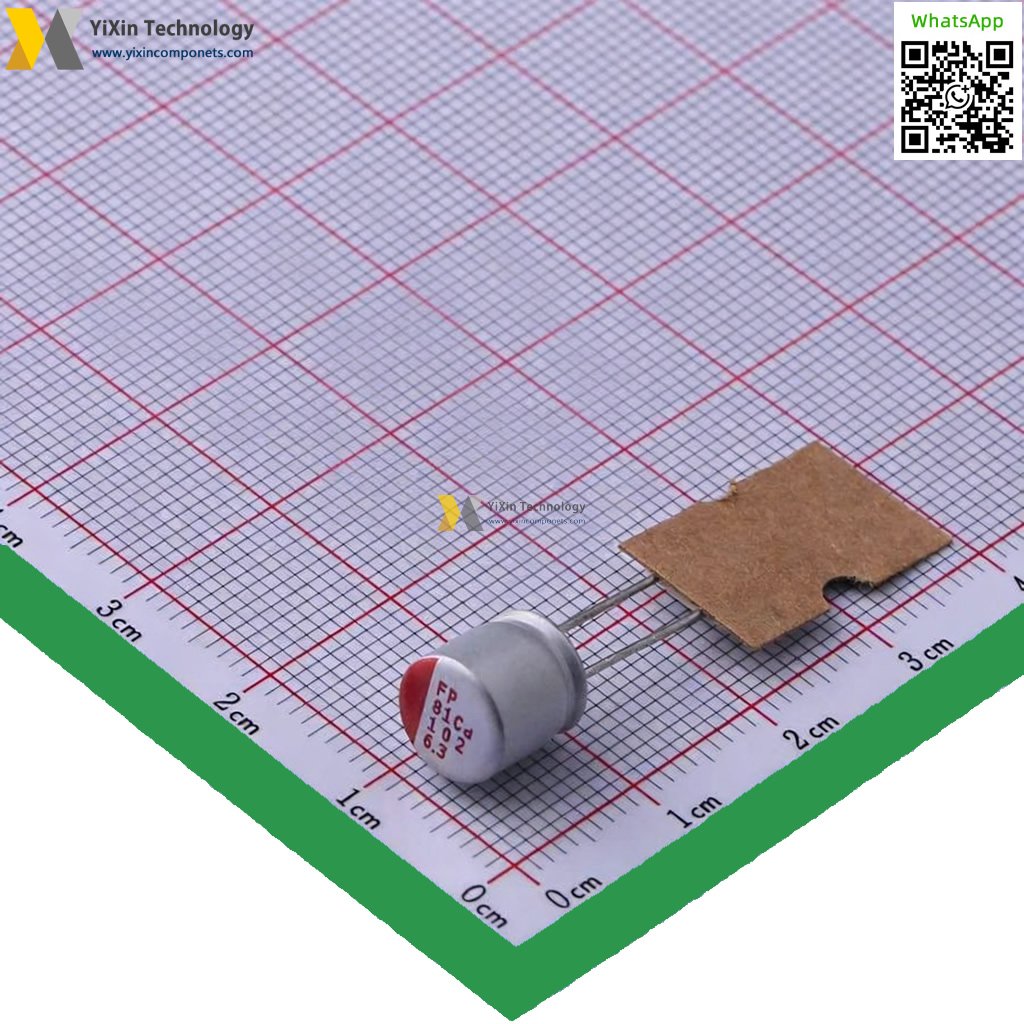

RL80J102MDN1KX
| Part Number | RL80J102MDN1KX |
| Manufacturer | Nichicon |
| Category | Capacitors |
| Description | CAP ALUM POLY 1000UF 6.3V T/H |
RL80J102MDN1KX Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | RL80J102MDN1KX PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Nichicon |
| Product Line | Passive Components |
| Subcategory | Aluminum Polymer Capacitors |
| Series | FPCAP, RL8 |
| Type | Polymer |
| Capacitance | 1000µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | 9 mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 570mA @ 120Hz |
| Ripple Current @ High Frequency | 5.7A @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
