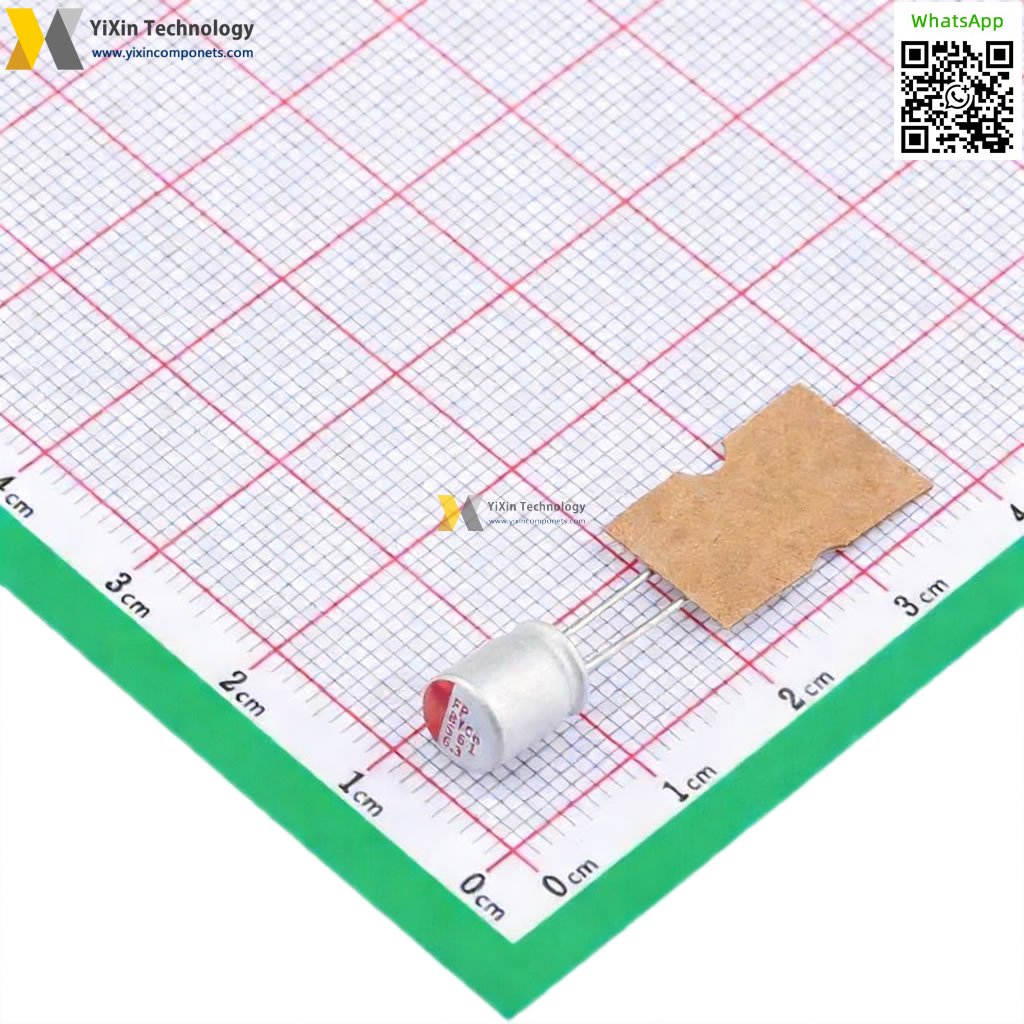

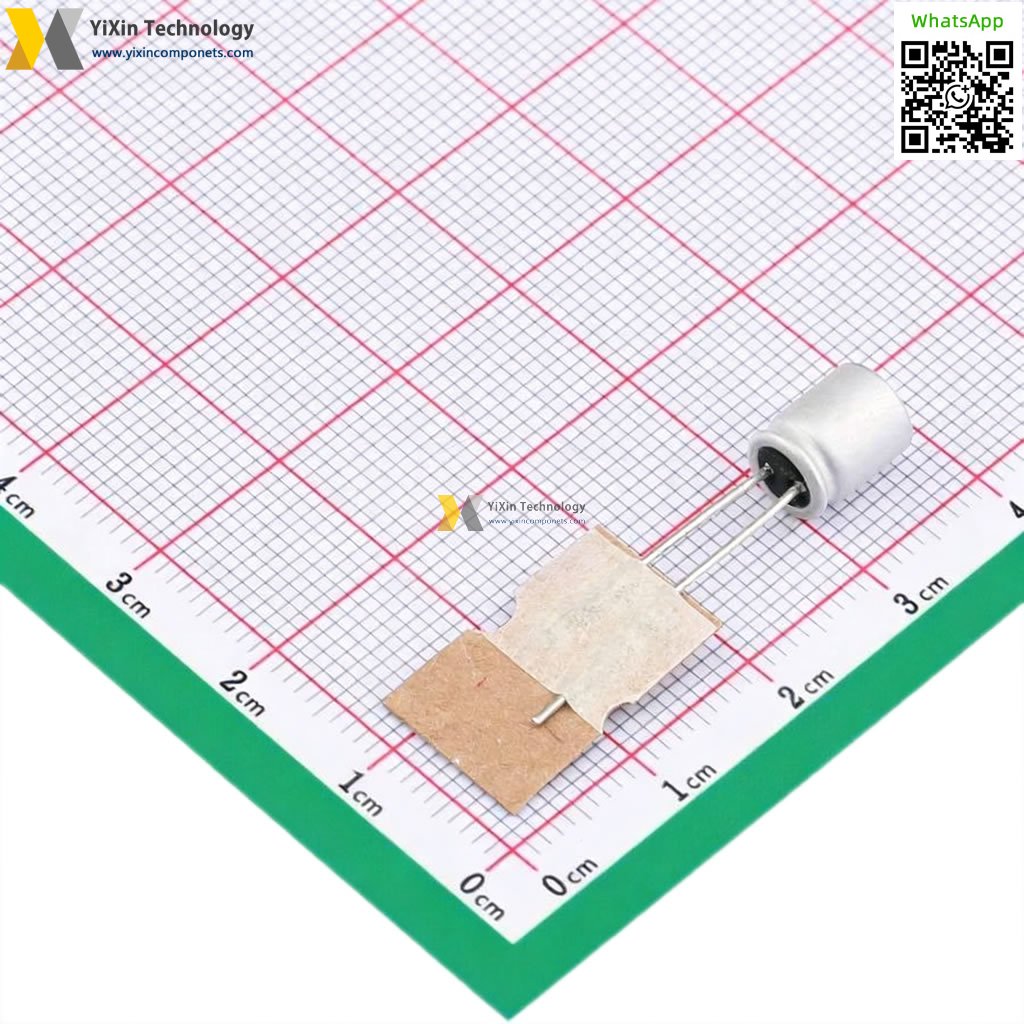

RS80J561MDN1JT

Part Number
RS80J561MDN1JT
Manufacturer
Nichicon
Category
Capacitors
Description
CAP ALUM POLY 560UF 20% 6.3V T/H
RS80J561MDN1JT Specifications
RoHS No RoHS Information
EDA/CAD Models RS80J561MDN1JT PCB Footprint and Symbol
Warranty Up to 1 year [Limited-Warranty]*
Brand Nichicon
Product Line Passive Components
Subcategory Aluminum Polymer Capacitors
Series FPCAP, RS8
Type Polymer
Capacitance 560µF
Tolerance ±20%
Voltage - Rated 6.3V
ESR (Equivalent Series Resistance) 8 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 500mA @ 120Hz
Ripple Current @ High Frequency 5A @ 100kHz
Impedance -
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
