| RoHS |
No RoHS Information |
| EDA/CAD Models |

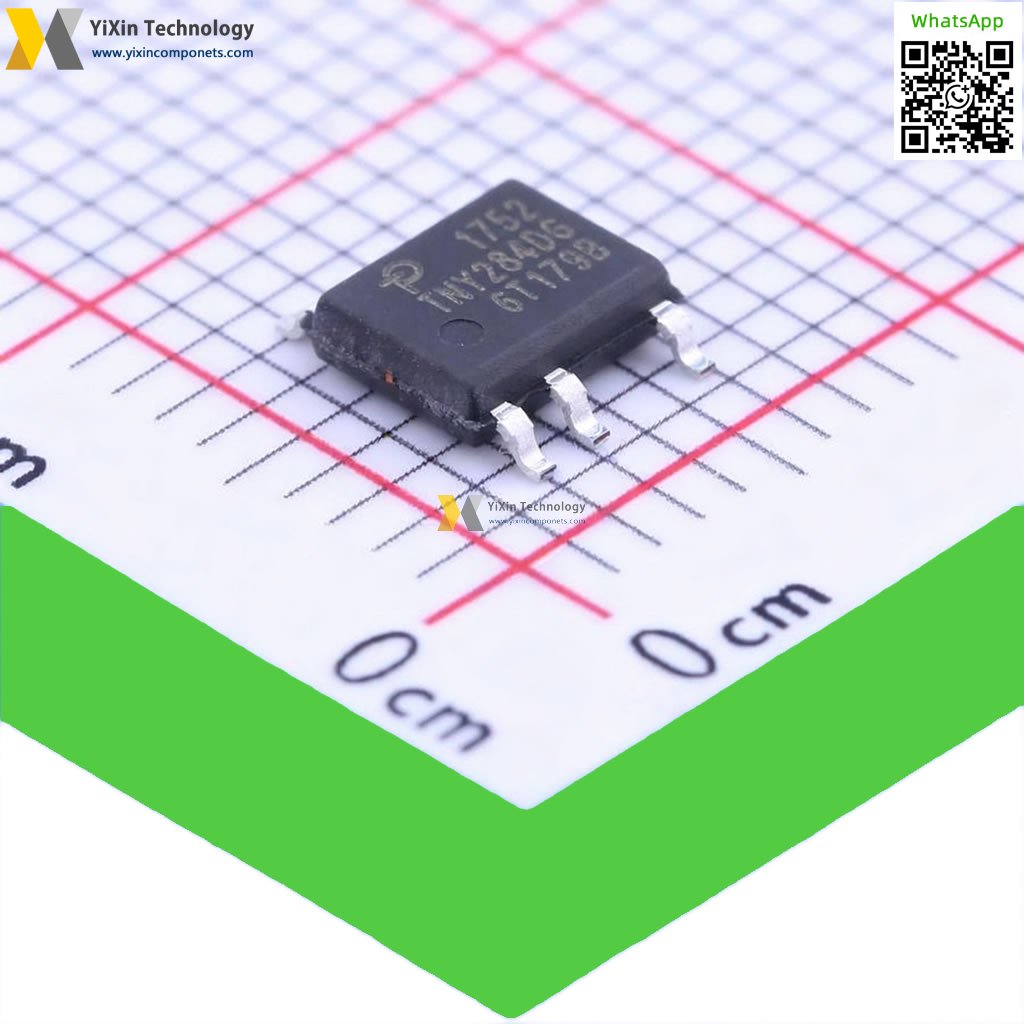

TNY284DG-TL PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Power Integrations |
| Product Line |
Semiconductors |
| Subcategory |
AC DC Converters, Offline Switchers |
| Series |
TinySwitch®-4 |
| Output Isolation |
Isolated |
| Internal Switch(s) |
Yes |
| Voltage - Breakdown |
725V |
| Topology |
Flyback |
| Voltage - Start Up |
- |
| Voltage - Supply (Vcc/Vdd) |
- |
| Duty Cycle |
67% |
| Frequency - Switching |
124kHz ~ 140kHz |
| Power (Watts) |
6W |
| Fault Protection |
Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features |
EN |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Package / Case |

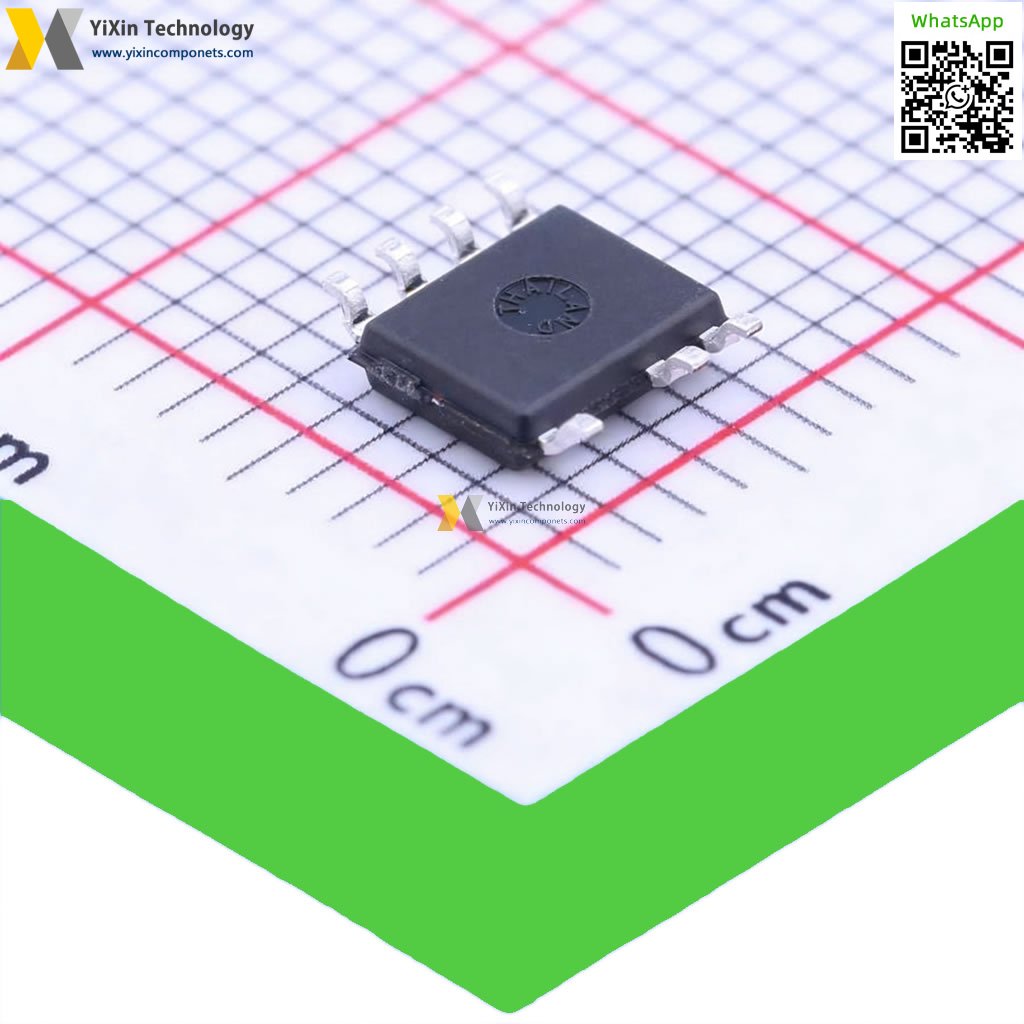

8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package |
8-SO |
| Mounting Type |
Surface Mount |
