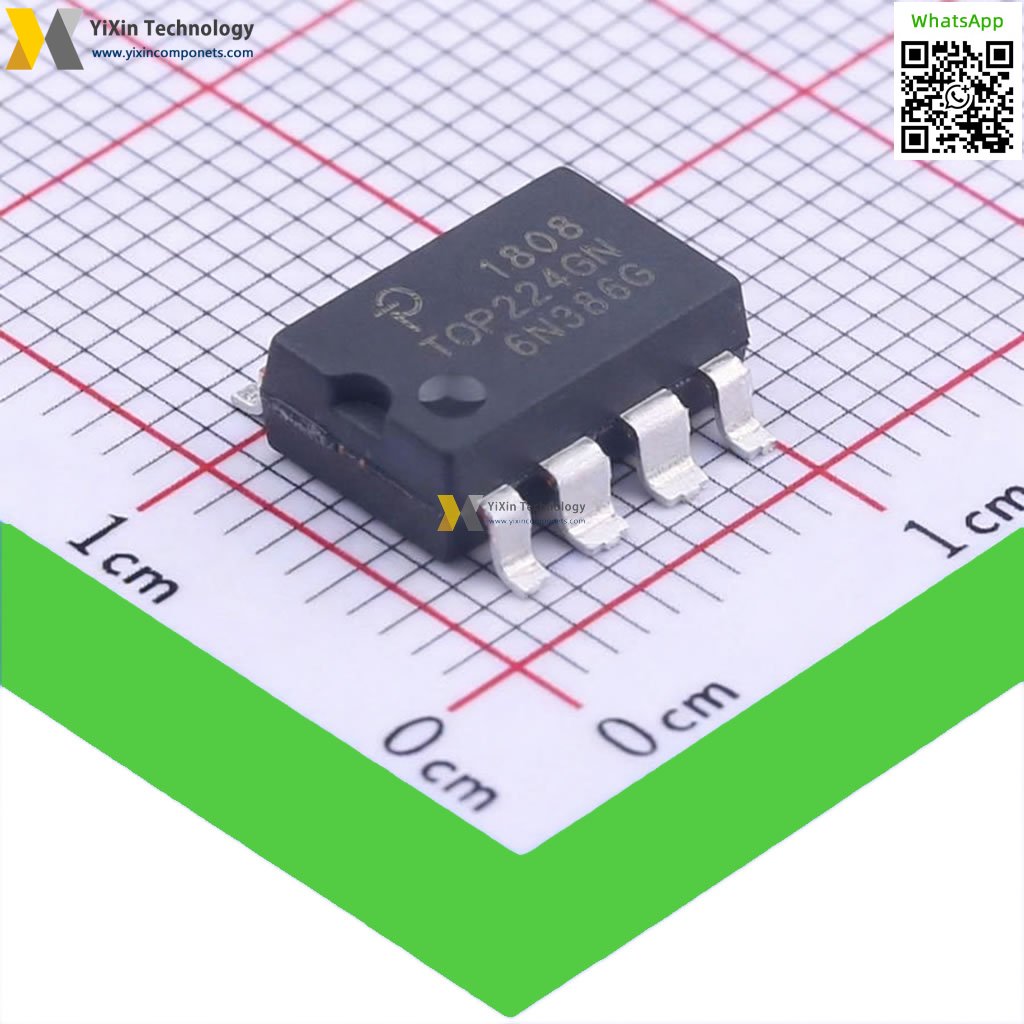

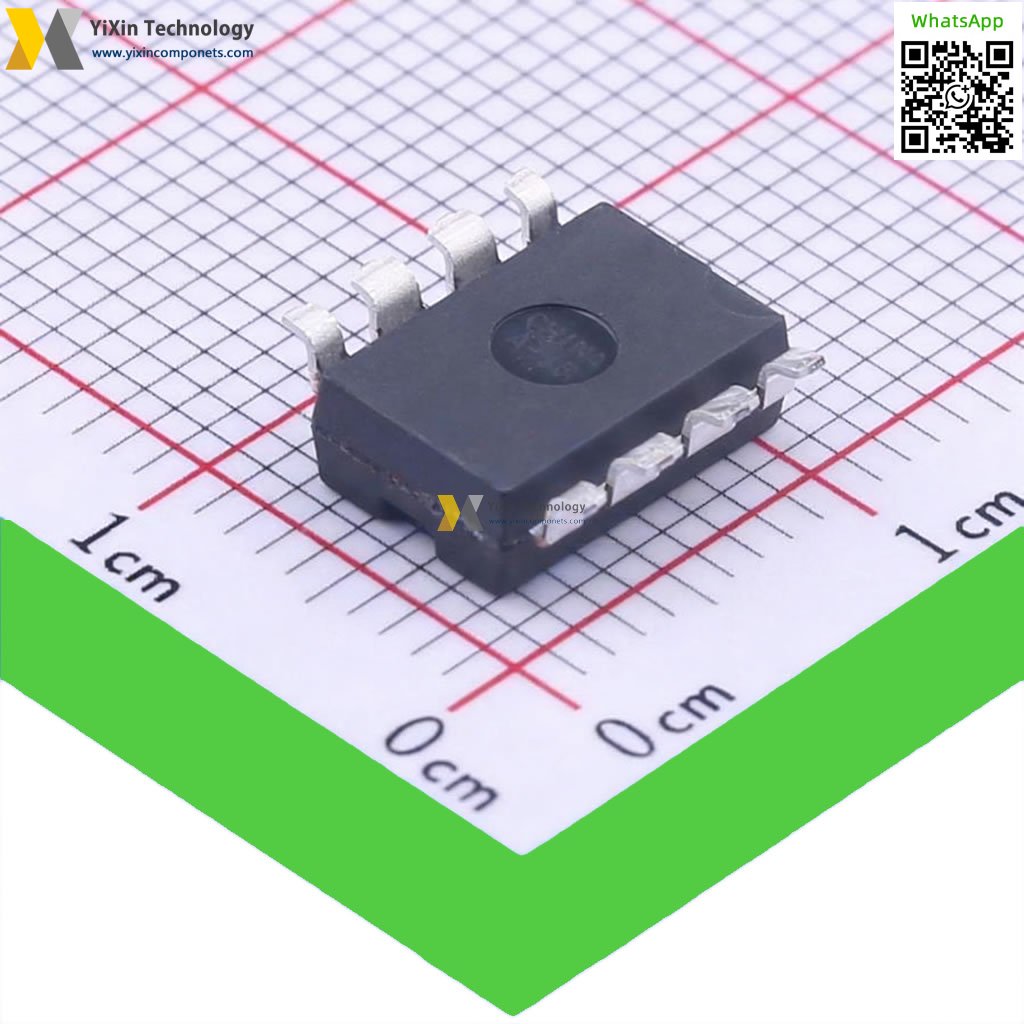

TOP224GN-TL

Part Number
TOP224GN-TL
Manufacturer
Power Integrations
Category
Power Management ICs
Description
IC OFFLINE SWIT PWM OCP HV 8SMD
TOP224GN-TL Specifications
RoHS No RoHS Information
EDA/CAD Models TOP224GN-TL PCB Footprint and Symbol
Warranty Up to 1 year [Limited-Warranty]*
Brand Power Integrations
Product Line Semiconductors
Subcategory AC DC Converters, Offline Switchers
Series TOPSwitch®-II
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Boost, Buck, Flyback, Forward
Voltage - Start Up -
Voltage - Supply (Vcc/Vdd) -
Duty Cycle 67%
Frequency - Switching 100kHz
Power (Watts) 30W
Fault Protection Current Limiting, Over Temperature
Control Features -
Operating Temperature -40°C ~ 150°C (TJ)
Package / Case 8-SMD, Gull Wing
Supplier Device Package 8-SMD
Mounting Type Surface Mount
Quick Inquiry
In Stock4526 - More on Order
Quote LimitNo Limit
Lead-TimeTo be Confirmed
Minimum1
