| RoHS |
No RoHS Information |
| EDA/CAD Models |

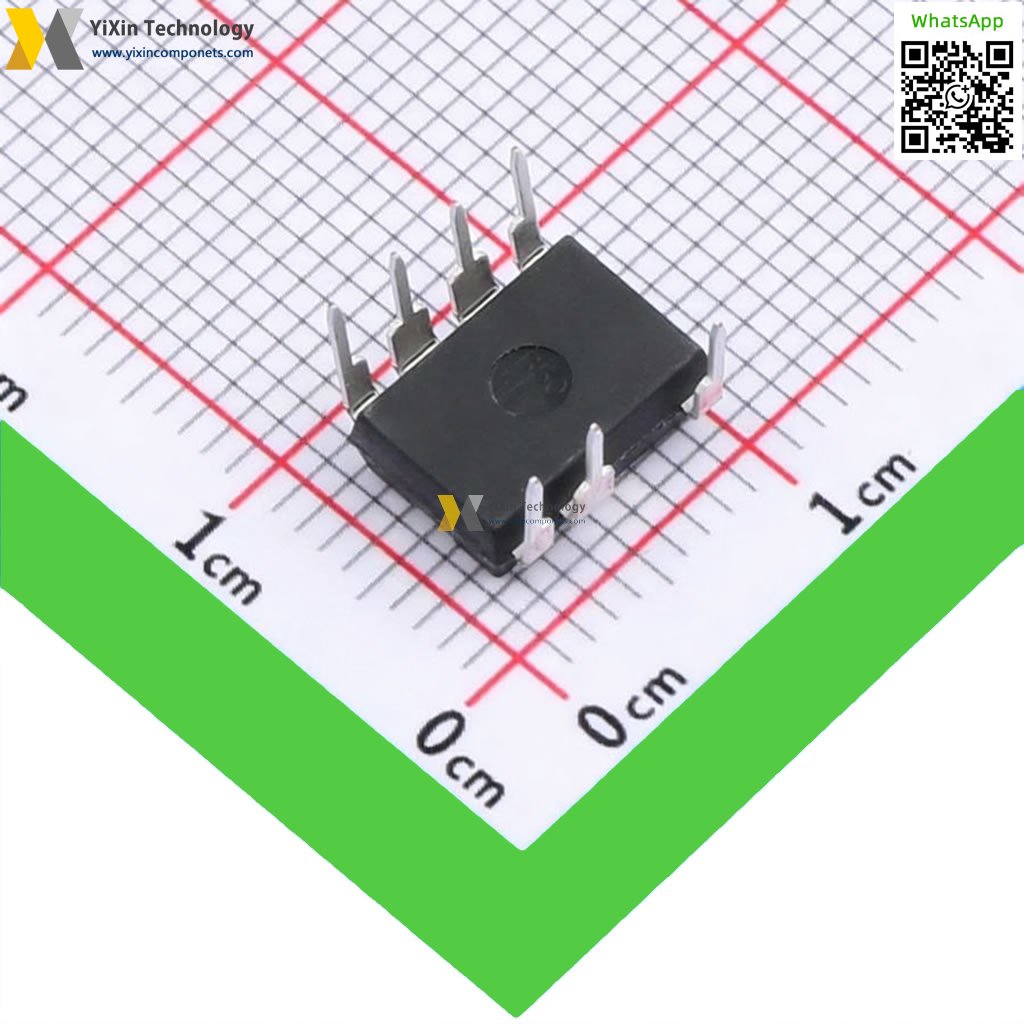

TOP243PN PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Power Integrations |
| Product Line |
Semiconductors |
| Subcategory |
AC DC Converters, Offline Switchers |
| Series |
TOPSwitch®-GX |
| Output Isolation |
Isolated |
| Internal Switch(s) |
Yes |
| Voltage - Breakdown |
700V |
| Topology |
Flyback |
| Voltage - Start Up |
- |
| Voltage - Supply (Vcc/Vdd) |
- |
| Duty Cycle |
66.5% |
| Frequency - Switching |
66kHz ~ 132kHz |
| Power (Watts) |
25W |
| Fault Protection |
Current Limiting, Over Temperature, Over Voltage |
| Control Features |
Frequency Control |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Package / Case |
8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package |
DIP-8B |
| Mounting Type |
Through Hole |
