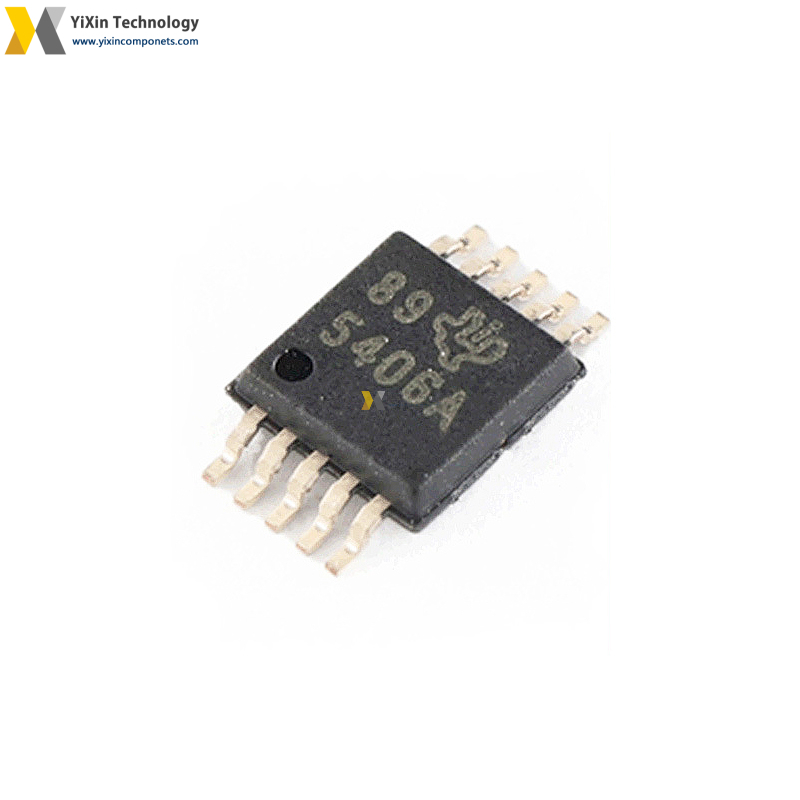

TPS54060ADGQR
| Part Number | TPS54060ADGQR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG BCK SPLIT RAIL ADJ 10MSOP |
TPS54060ADGQR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS54060ADGQR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Regulators |
| Series | SWIFT™, Eco-Mode™ |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Split Rail |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 58V |
| Current - Output | 500mA |
| Frequency - Switching | 100kHz ~ 2.5MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-PowerPad |
