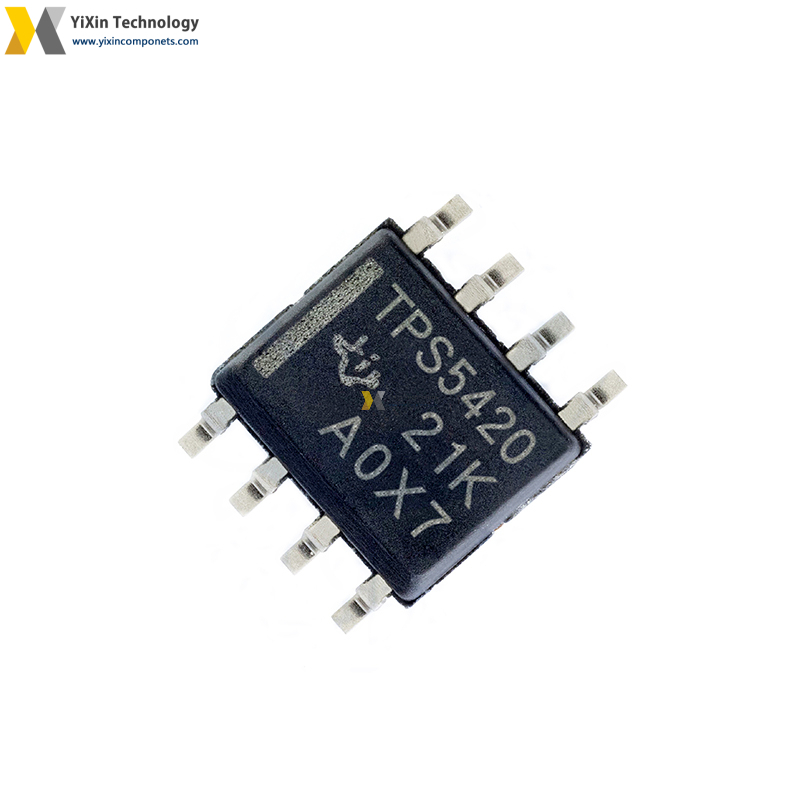

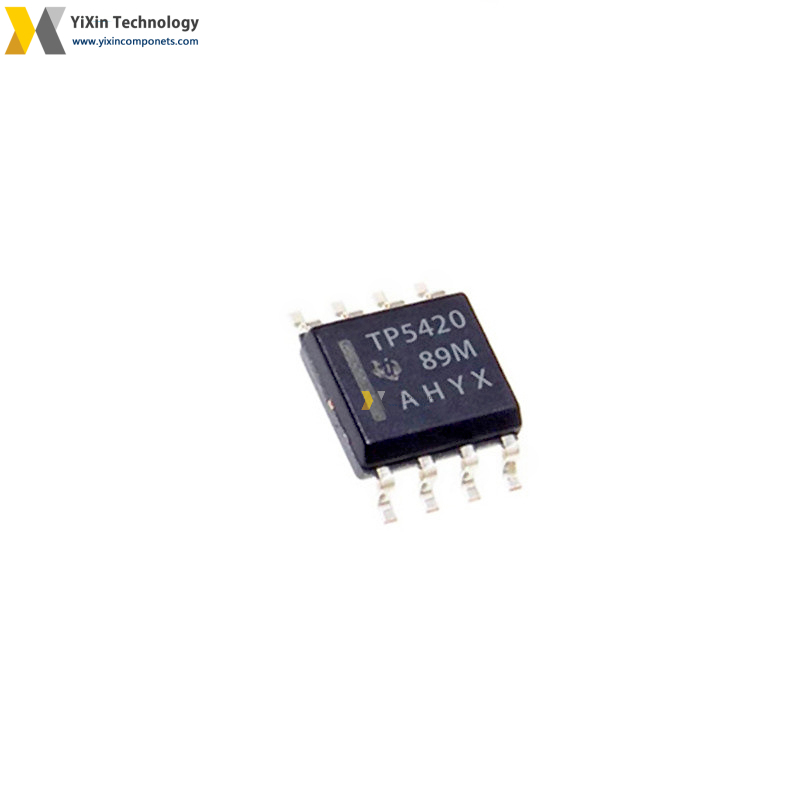

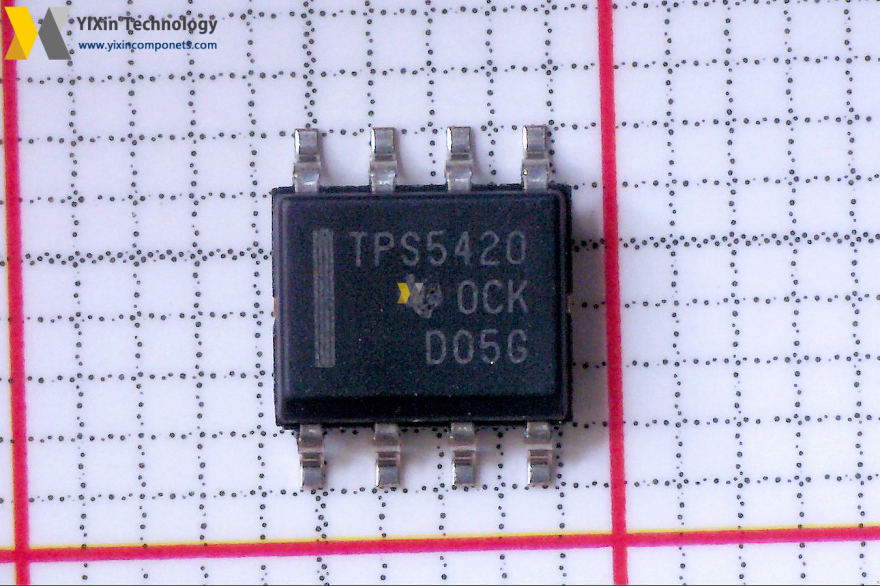

TPS5420DR
| Part Number | TPS5420DR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG BUCK ADJUSTABLE 2A 8SOIC |
TPS5420DR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS5420DR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Regulators |
| Series | - |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 5.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 31V |
| Current - Output | 2A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Quick Inquiry
| In Stock | 44259 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
