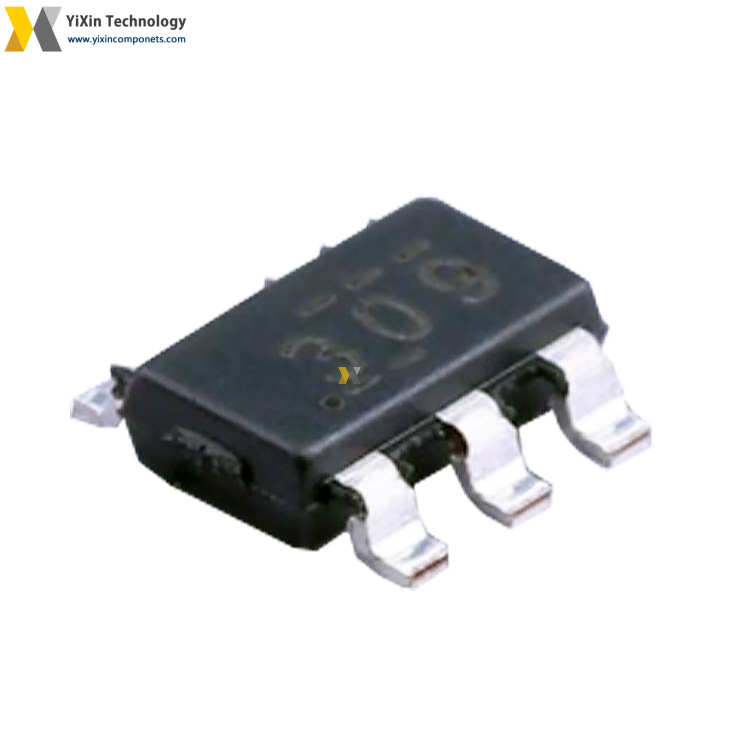

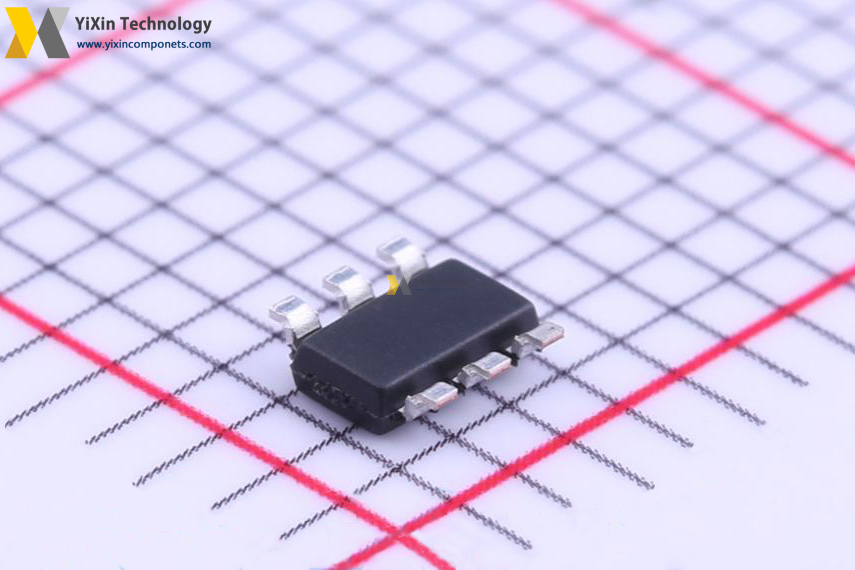

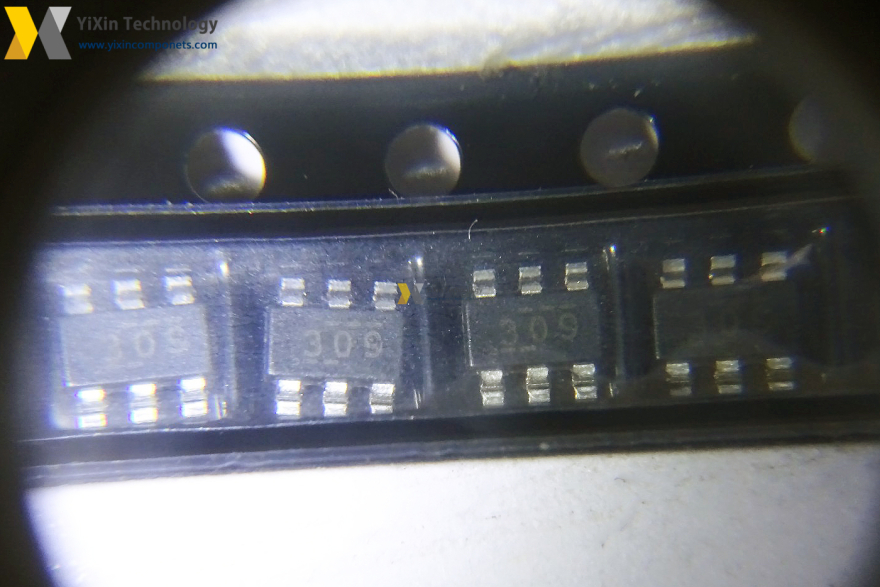

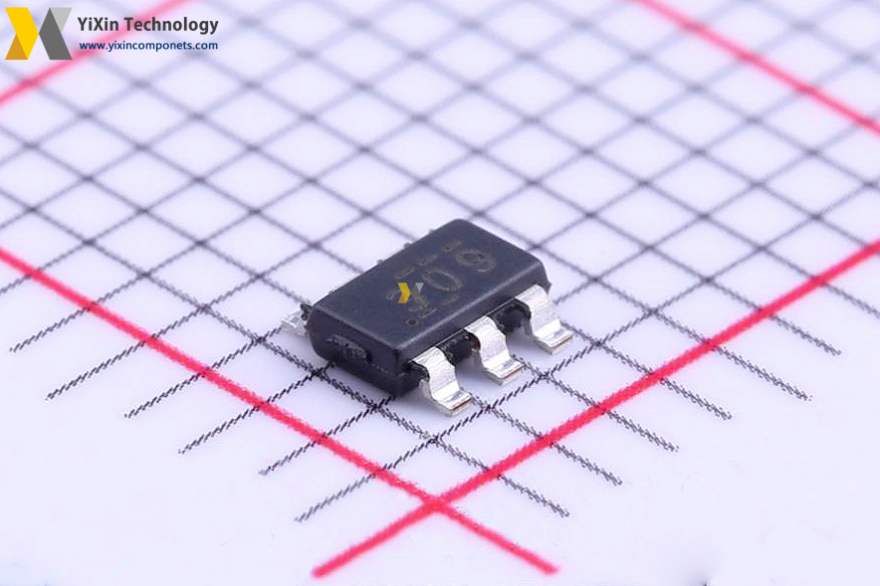

TPS563209DDCR
| Part Number | TPS563209DDCR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG BUCK ADJ 3A TSOT23-6 |
TPS563209DDCR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS563209DDCR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Regulators |
| Series | D-CAP2™ |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.76V |
| Voltage - Output (Max) | 7V |
| Current - Output | 3A |
| Frequency - Switching | 650kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
