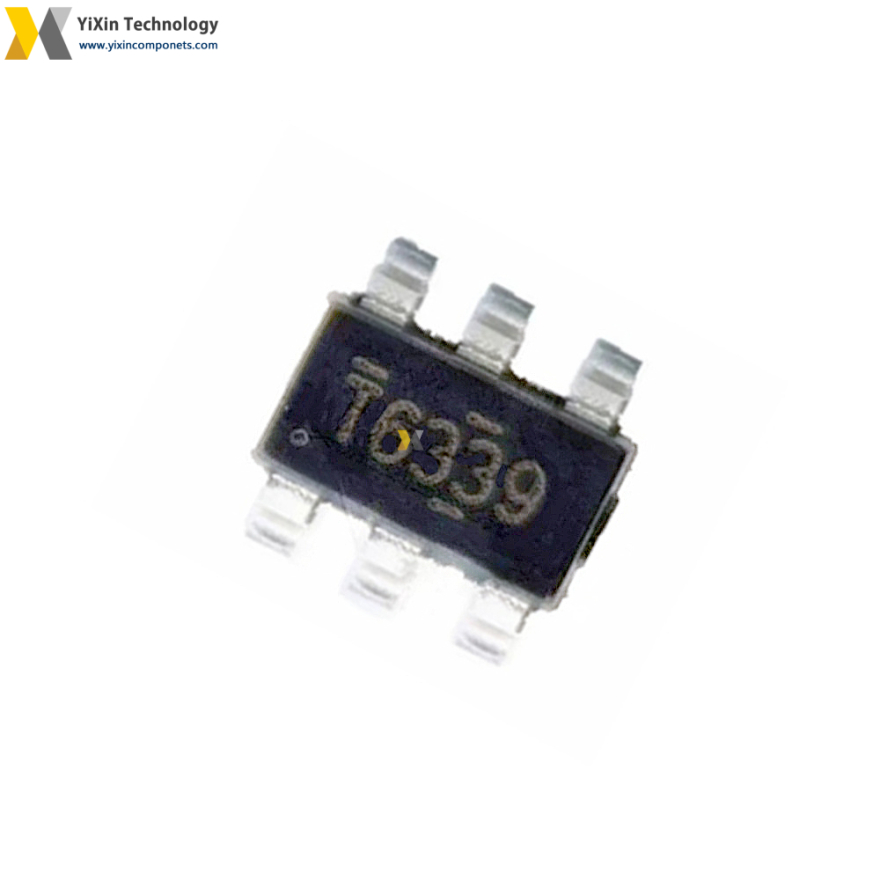

TPS56339DDCR
| Part Number | TPS56339DDCR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | PWR MGMT SPECIALIZED REGULATOR |
TPS56339DDCR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS56339DDCR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Regulators |
| Series | - |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 16V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
