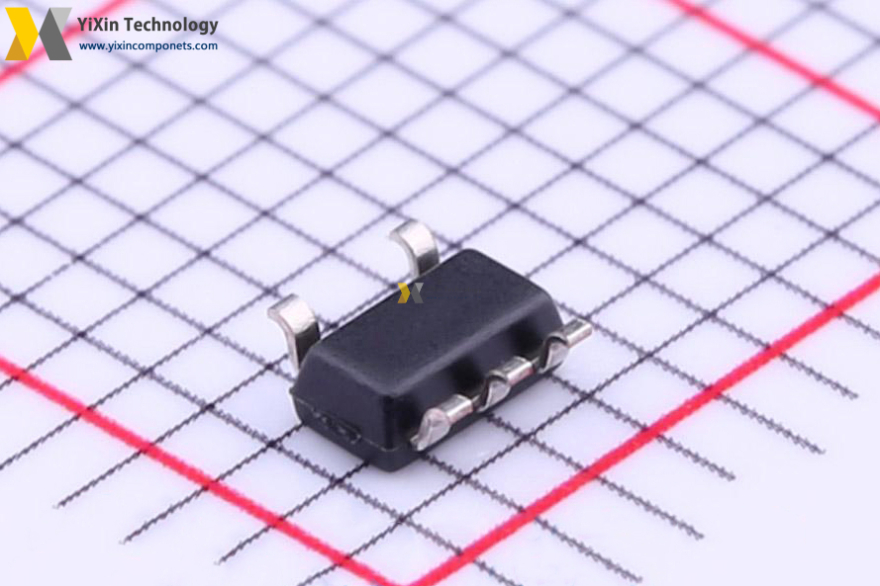

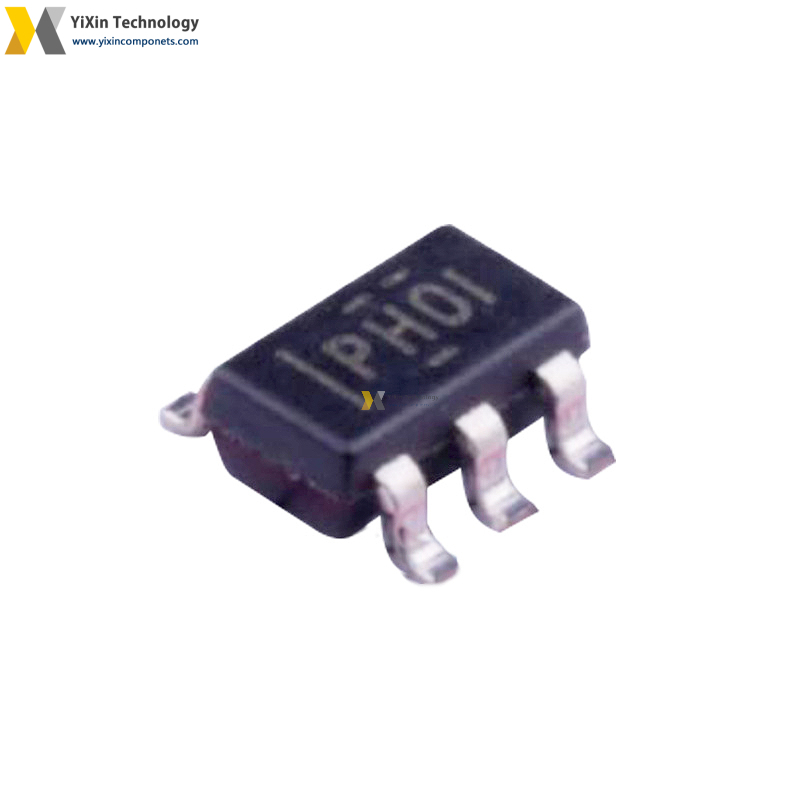

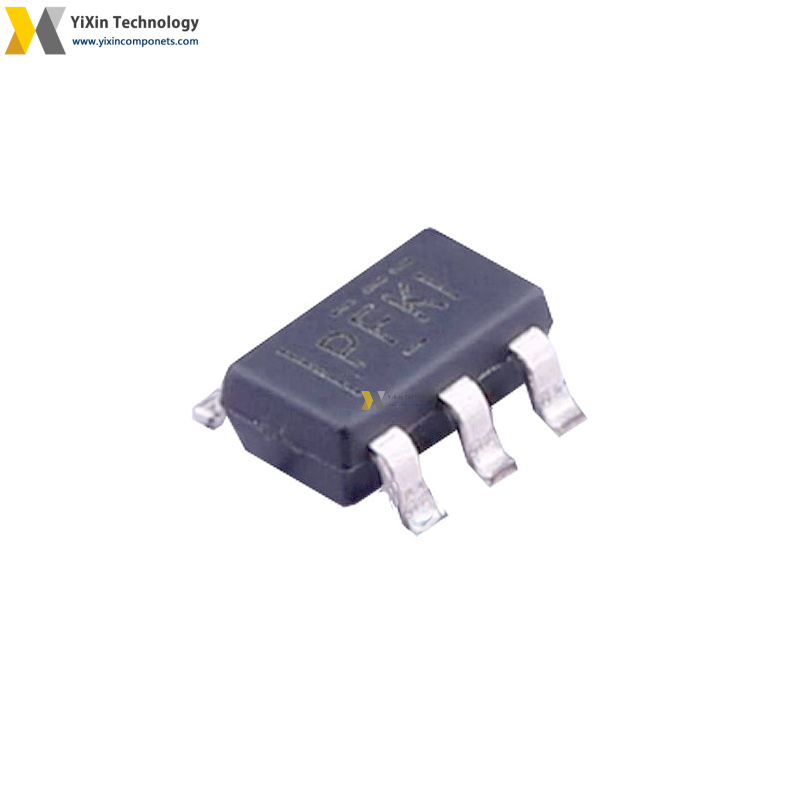

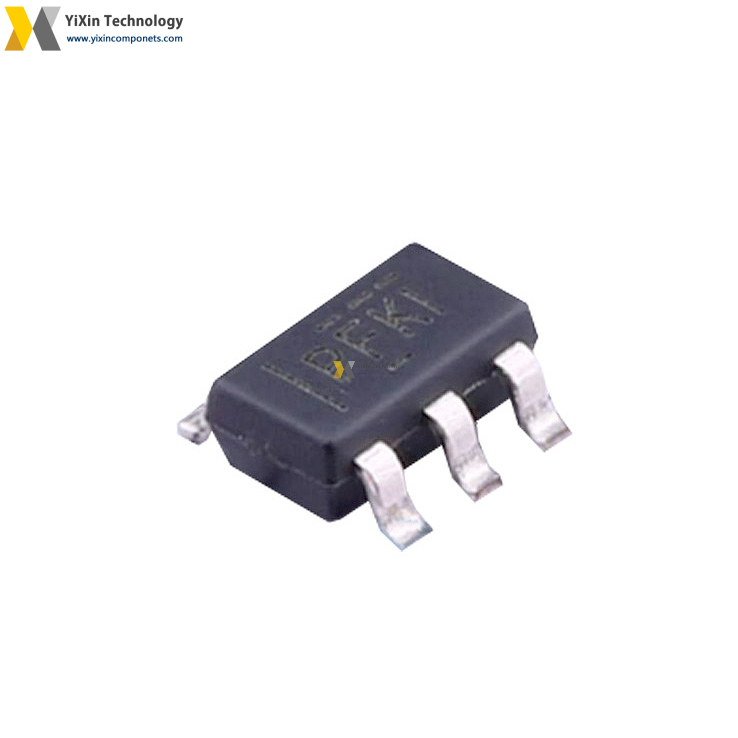

TPS60400DBVR
| Part Number | TPS60400DBVR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG CHARG PUMP INV 60MA SOT23 |
TPS60400DBVR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS60400DBVR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Regulators |
| Series | - |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin, Vin/2 |
| Voltage - Output (Max) | - |
| Current - Output | 60mA |
| Frequency - Switching | 50kHz ~ 250kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
Quick Inquiry
| In Stock | 45121 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
