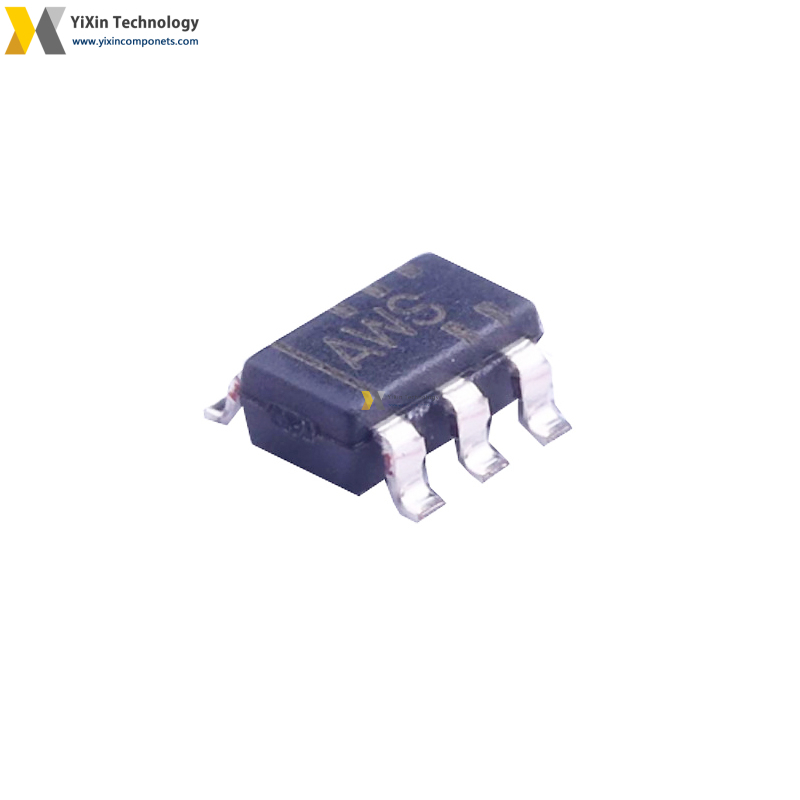

TPS60403QDBVRQ1
| Part Number | TPS60403QDBVRQ1 |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG CHARG PUMP INV 60MA SOT23 |
TPS60403QDBVRQ1 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS60403QDBVRQ1 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Regulators |
| Series | Automotive, AEC-Q100 |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin, Vin/2 |
| Voltage - Output (Max) | - |
| Current - Output | 60mA |
| Frequency - Switching | 250kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
Quick Inquiry
| In Stock | 46014 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
