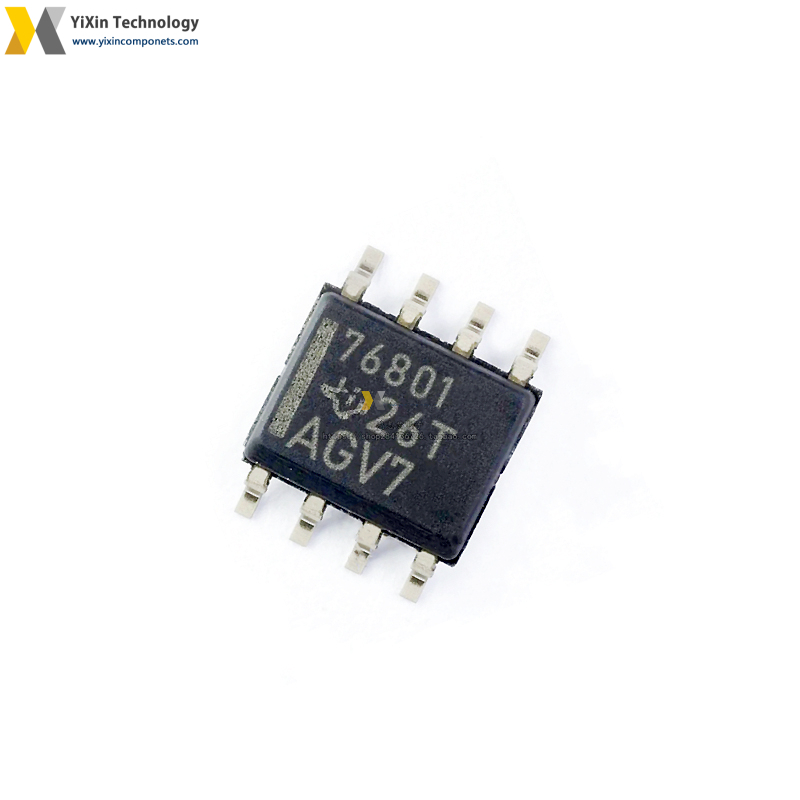

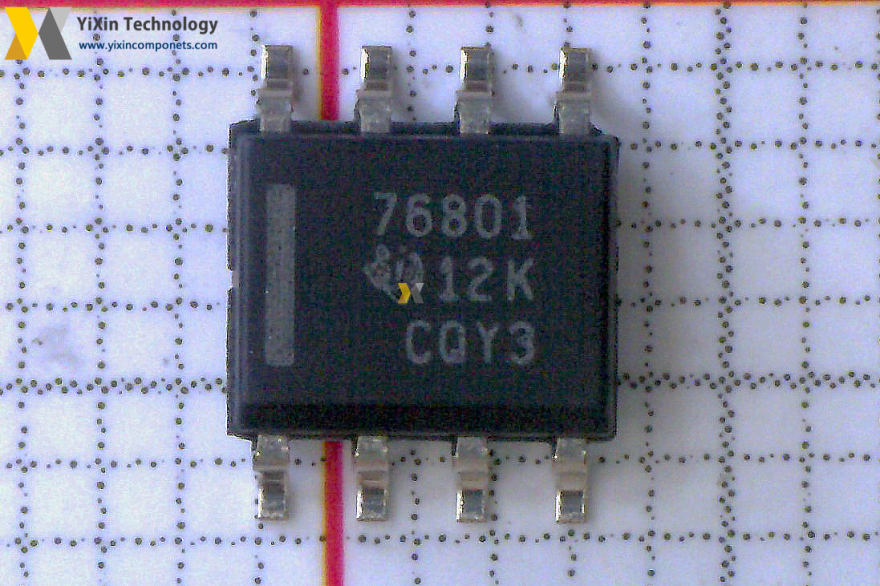

TPS76801QDR
| Part Number | TPS76801QDR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG LINEAR POS ADJ 1A 8SOIC |
TPS76801QDR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TPS76801QDR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - Linear |
| Series | - |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 125µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (1kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Quick Inquiry
| In Stock | 8336 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
