| RoHS |
No RoHS Information
|
| EDA/CAD Models |

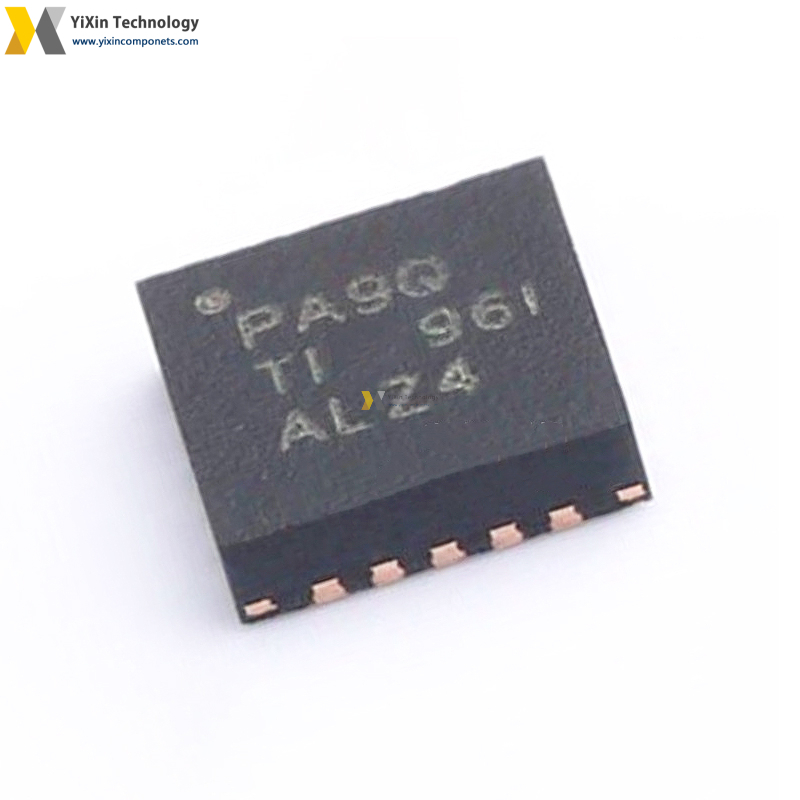

TPS7A8300RGRR PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Texas Instruments |
| Product Line |
Semiconductors |
| Subcategory |
Voltage Regulators - Linear |
| Series |
- |
| Output Configuration |
Positive |
| Output Type |
Adjustable/Programmable |
| Number of Regulators |
1 |
| Voltage - Input (Max) |
6.5V |
| Voltage - Output (Min/Fixed) |
0.8V |
| Voltage - Output (Max) |
5V |
| Voltage Dropout (Max) |
0.2V @ 2A |
| Current - Output |
2A |
| Current - Quiescent (Iq) |
4mA |
| Current - Supply (Max) |
5mA |
| PSRR |
40dB (1MHz) |
| Control Features |
Enable, Power Good, Soft Start |
| Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type |
Surface Mount |
| Package / Case |
20-VFQFN Exposed Pad |
| Supplier Device Package |
20-VQFN (3.5x3.5) |
