| RoHS |
No RoHS Information
|
| EDA/CAD Models |

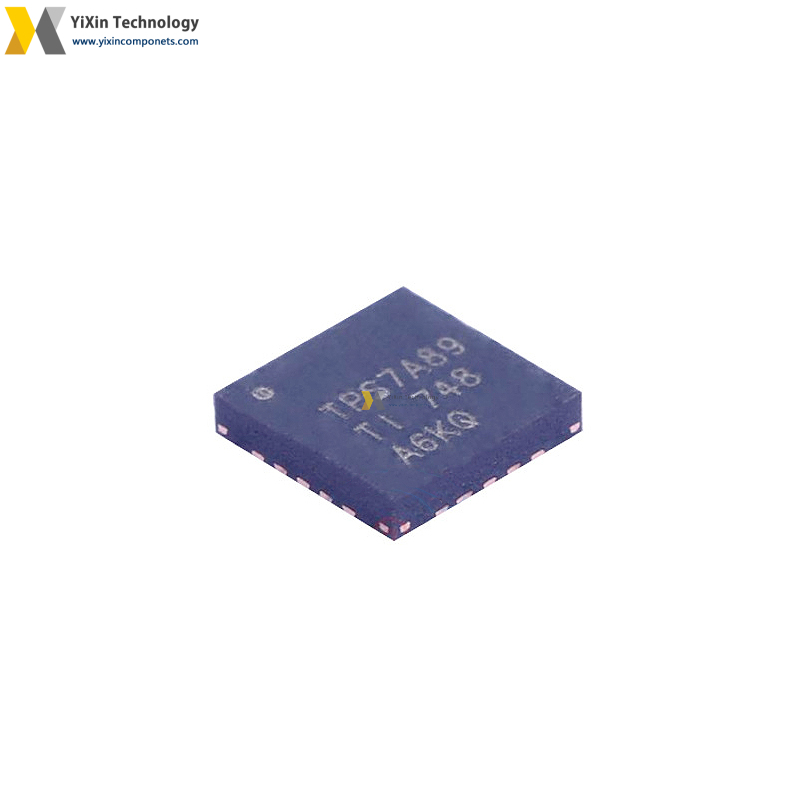

TPS7A8901RTJR PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Texas Instruments |
| Product Line |
Semiconductors |
| Subcategory |
Voltage Regulators - Linear |
| Series |
- |
| Output Configuration |
Positive |
| Output Type |
Adjustable |
| Number of Regulators |
2 |
| Voltage - Input (Max) |
6.5V |
| Voltage - Output (Min/Fixed) |
0.8V |
| Voltage - Output (Max) |
5.2V |
| Voltage Dropout (Max) |
0.4V @ 2A |
| Current - Output |
2A, 2A |
| Current - Quiescent (Iq) |
3.5mA |
| Current - Supply (Max) |
4mA |
| PSRR |
40dB (500kHz) |
| Control Features |
Enable, Power Good, Soft Start |
| Protection Features |
Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type |
Surface Mount |
| Package / Case |
20-WFQFN Exposed Pad |
| Supplier Device Package |
20-QFN (4x4) |
