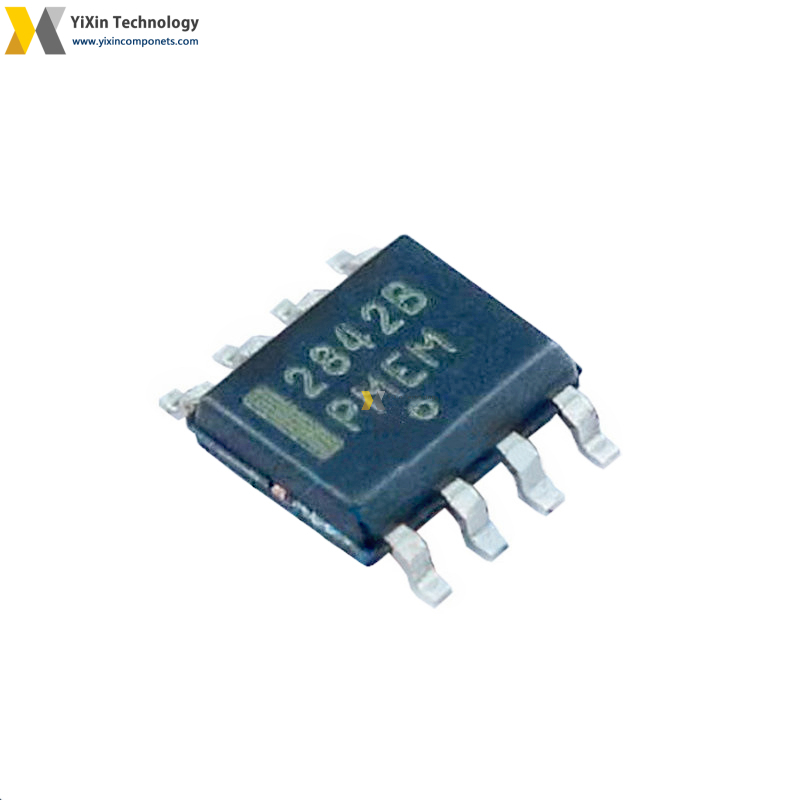

UC2842BD1R2G
| Part Number | UC2842BD1R2G |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC REG CTRLR BST FLYBK ISO 8SOIC |
UC2842BD1R2G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UC2842BD1R2G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Controllers |
| Series | - |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
