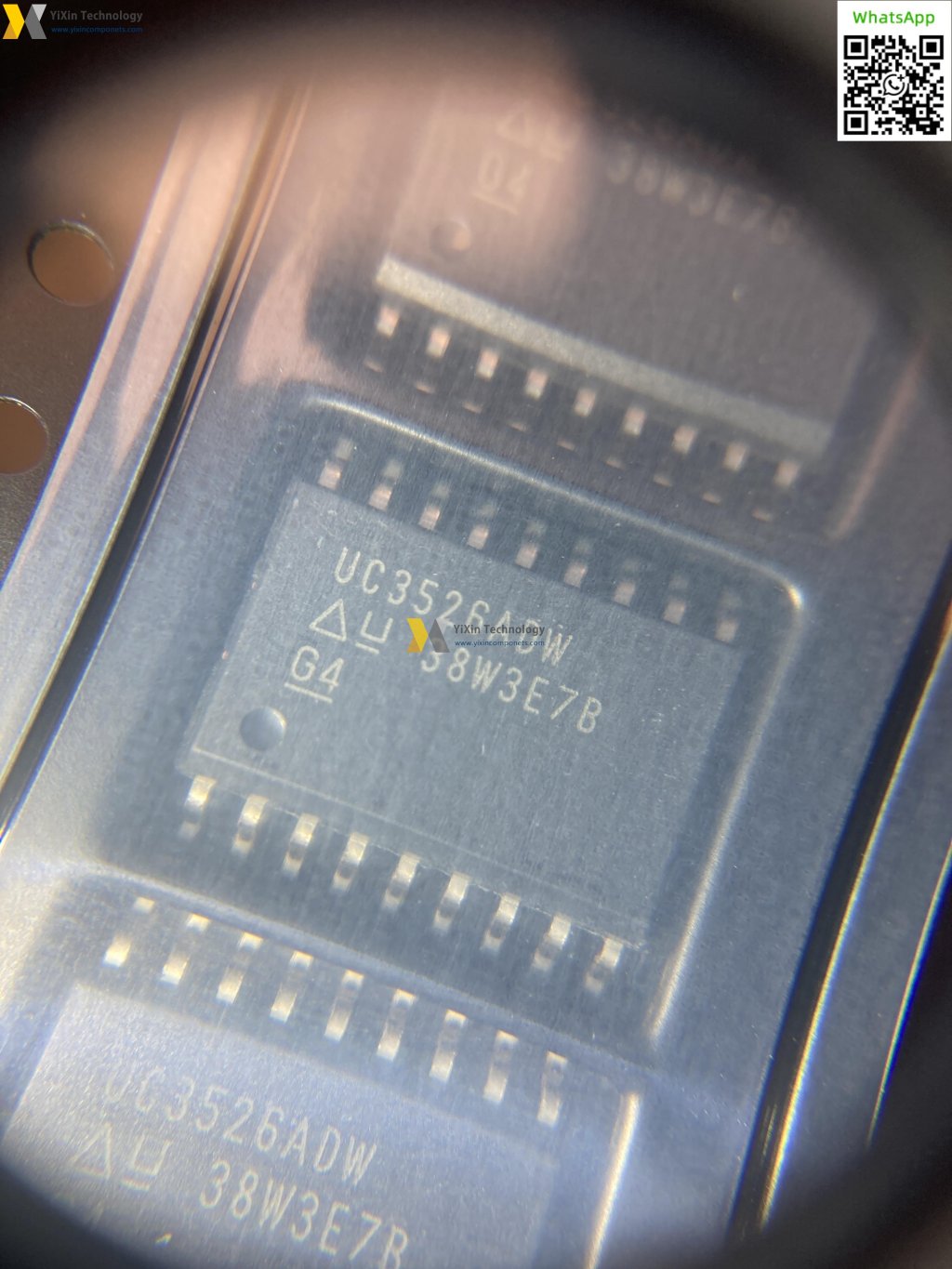

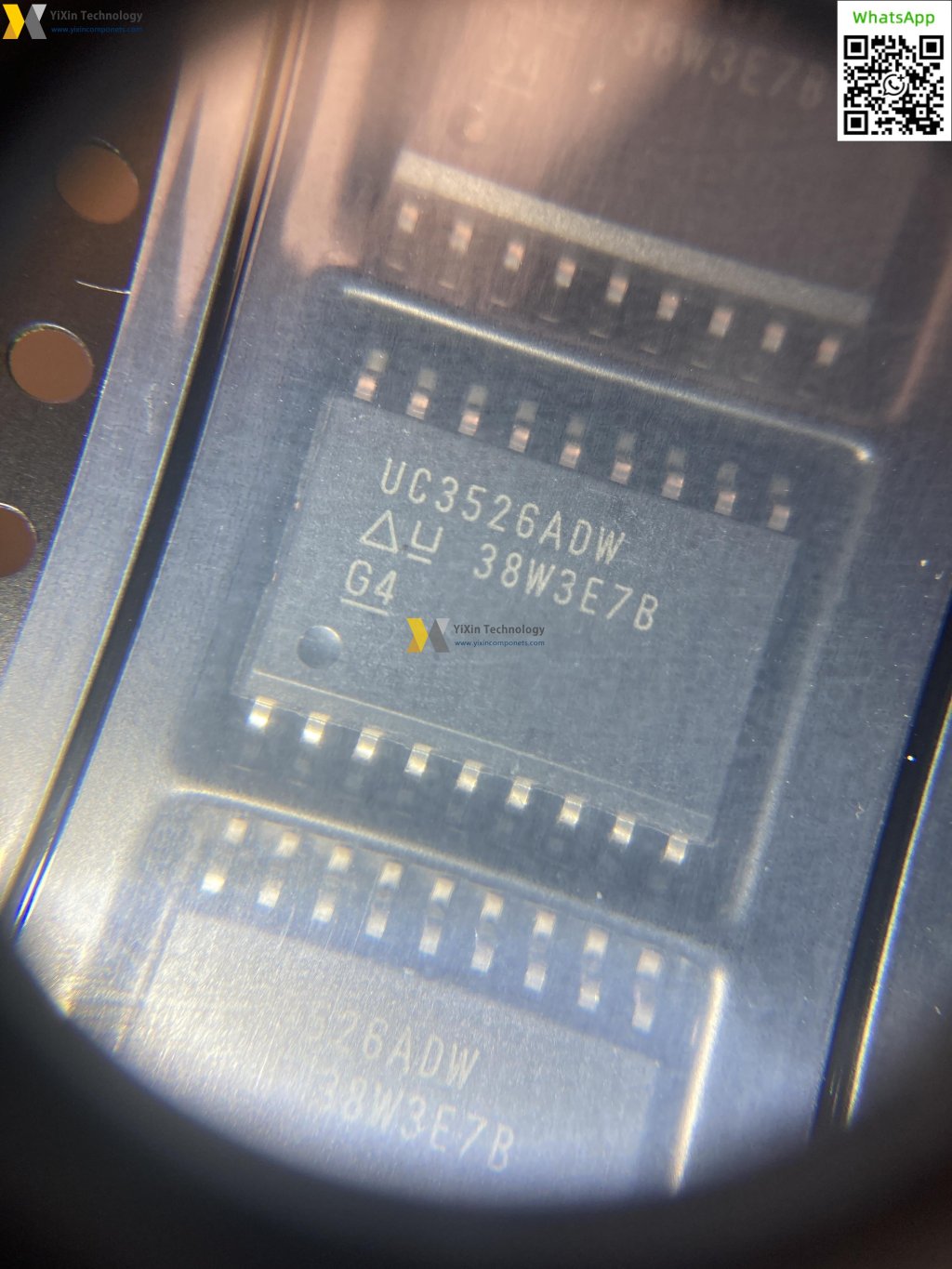

UC3526ADWG4
| Part Number | UC3526ADWG4 |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG CTRLR MULT TOP 18SOIC |
UC3526ADWG4 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UC3526ADWG4 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Controllers |
| Series | - |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 35V |
| Frequency - Switching | 1Hz ~ 600kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
Quick Inquiry
| In Stock | 147 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
