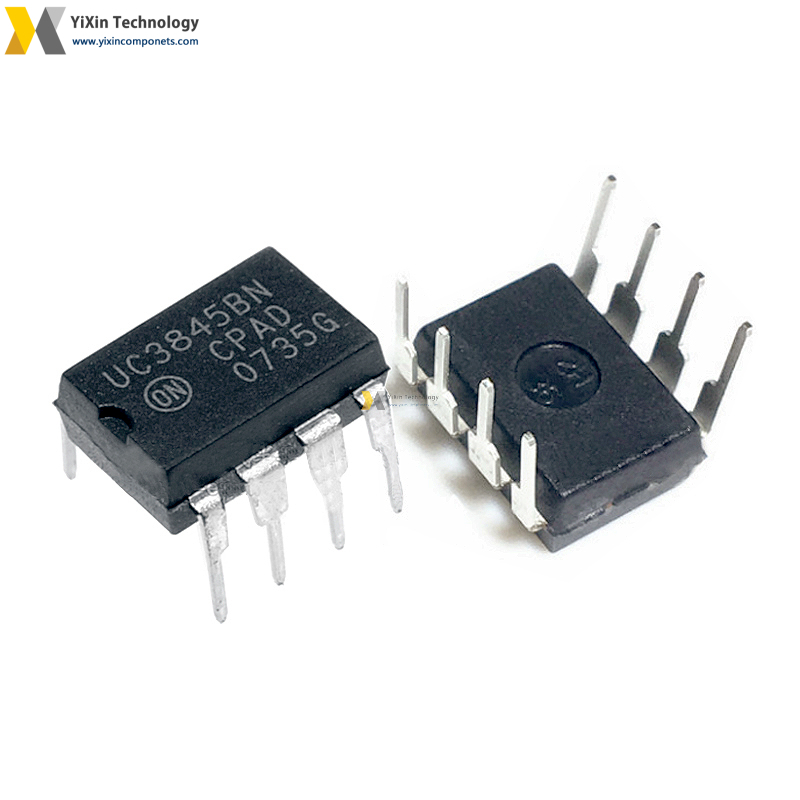

UC3845BN
| Part Number | UC3845BN |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC REG CTRLR BOOST/FLYBACK 8DIP |
UC3845BN Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UC3845BN PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Controllers |
| Series | - |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable |
| Topology | Boost, Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | 500kHz |
| Duty Cycle (Max) | 48% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
