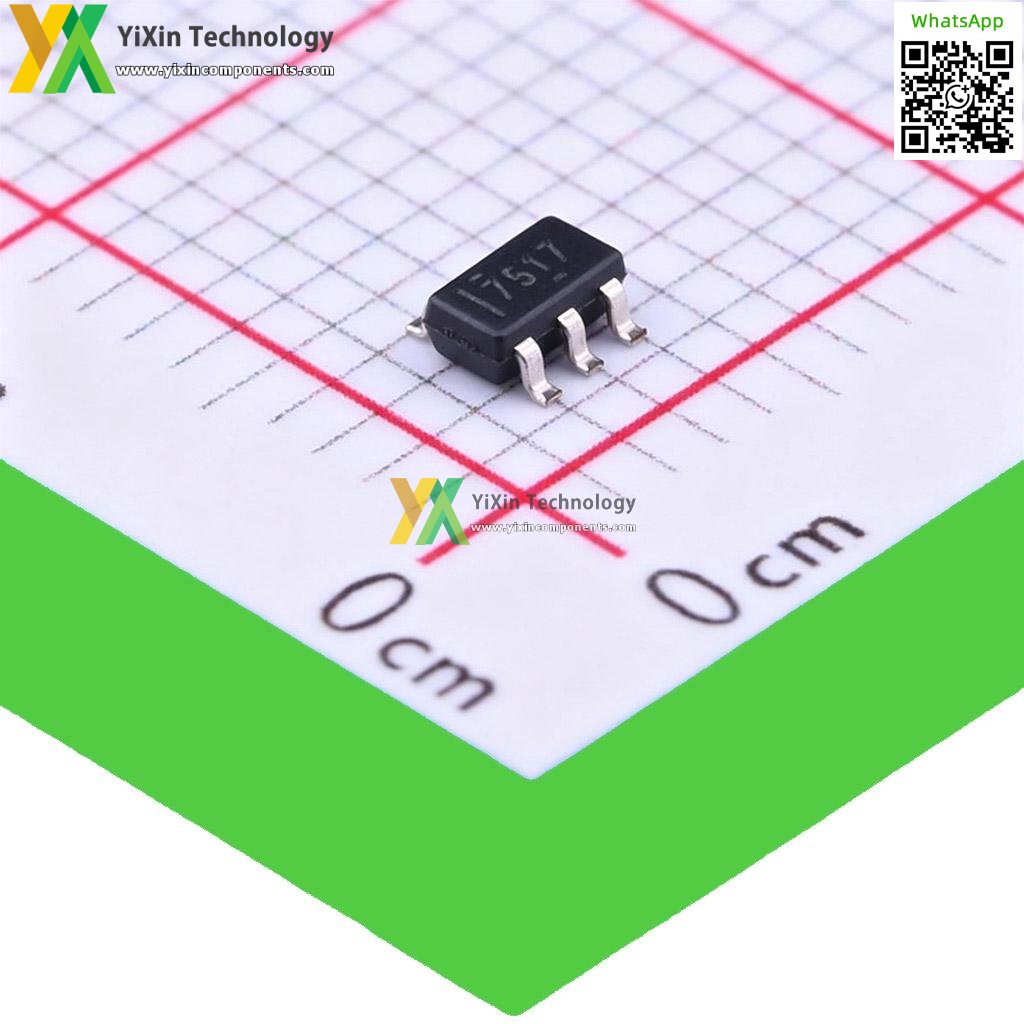

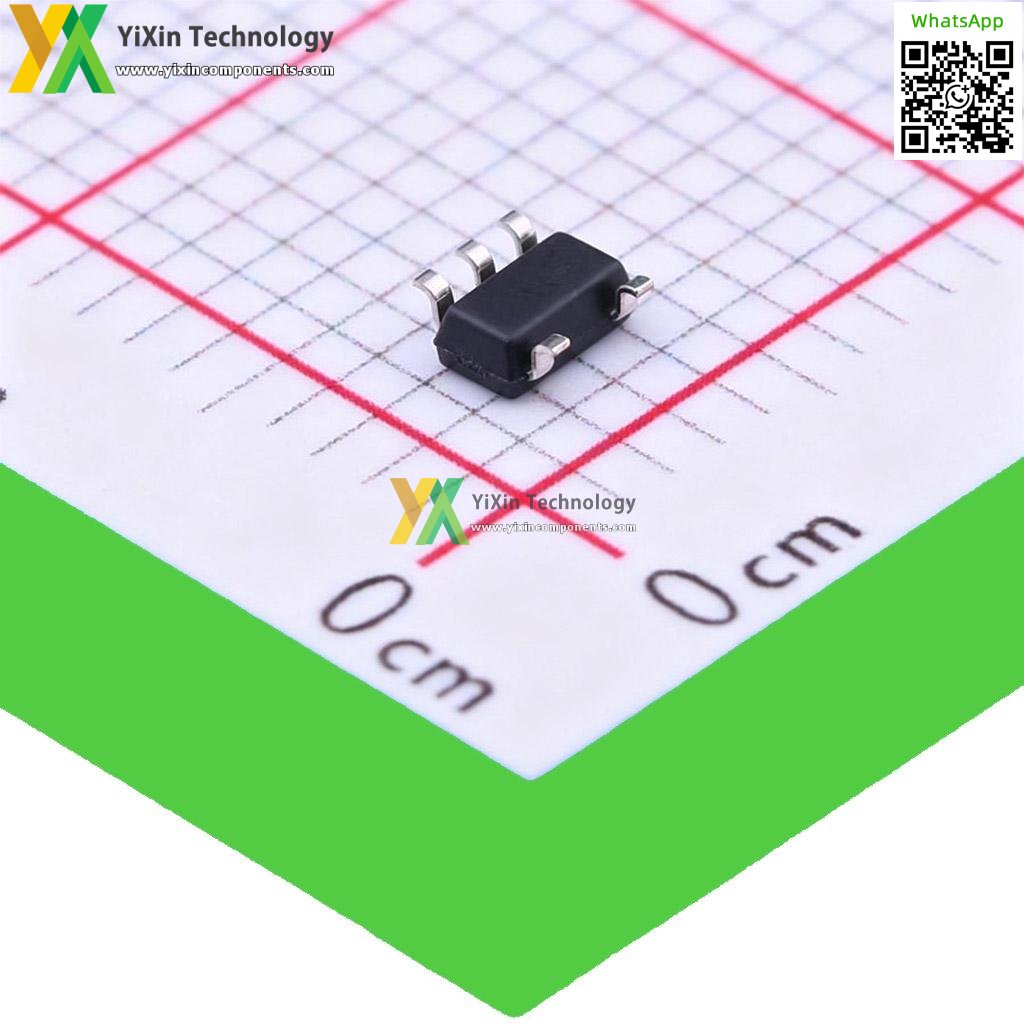

UCC27517DBVR
| Part Number | UCC27517DBVR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC GATE DVR LOW SIDE 1CH SOT23-5 |
UCC27517DBVR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UCC27517DBVR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
