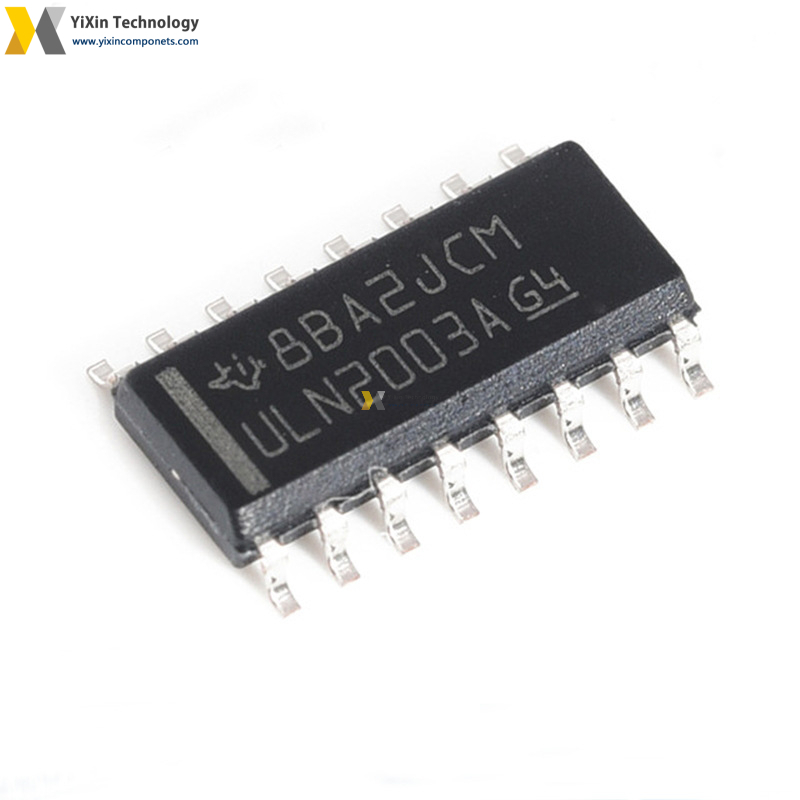

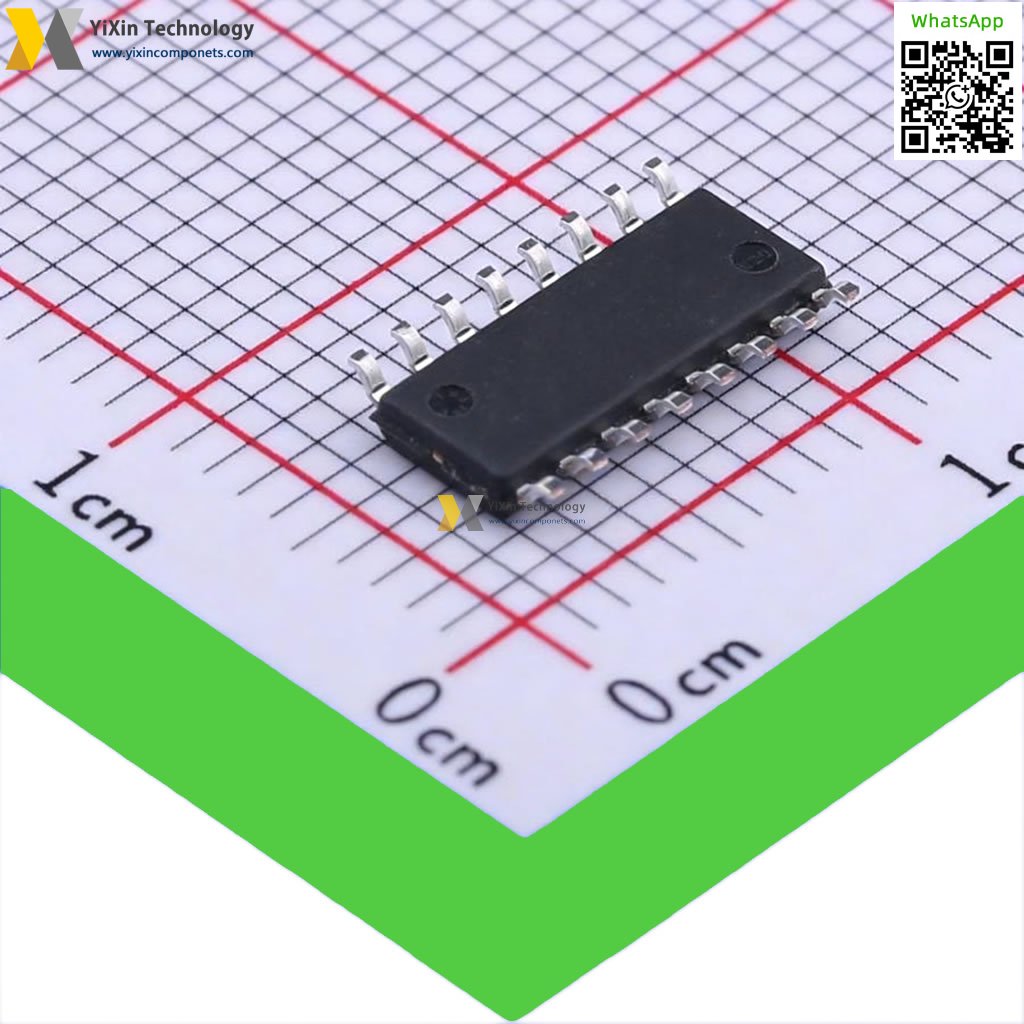

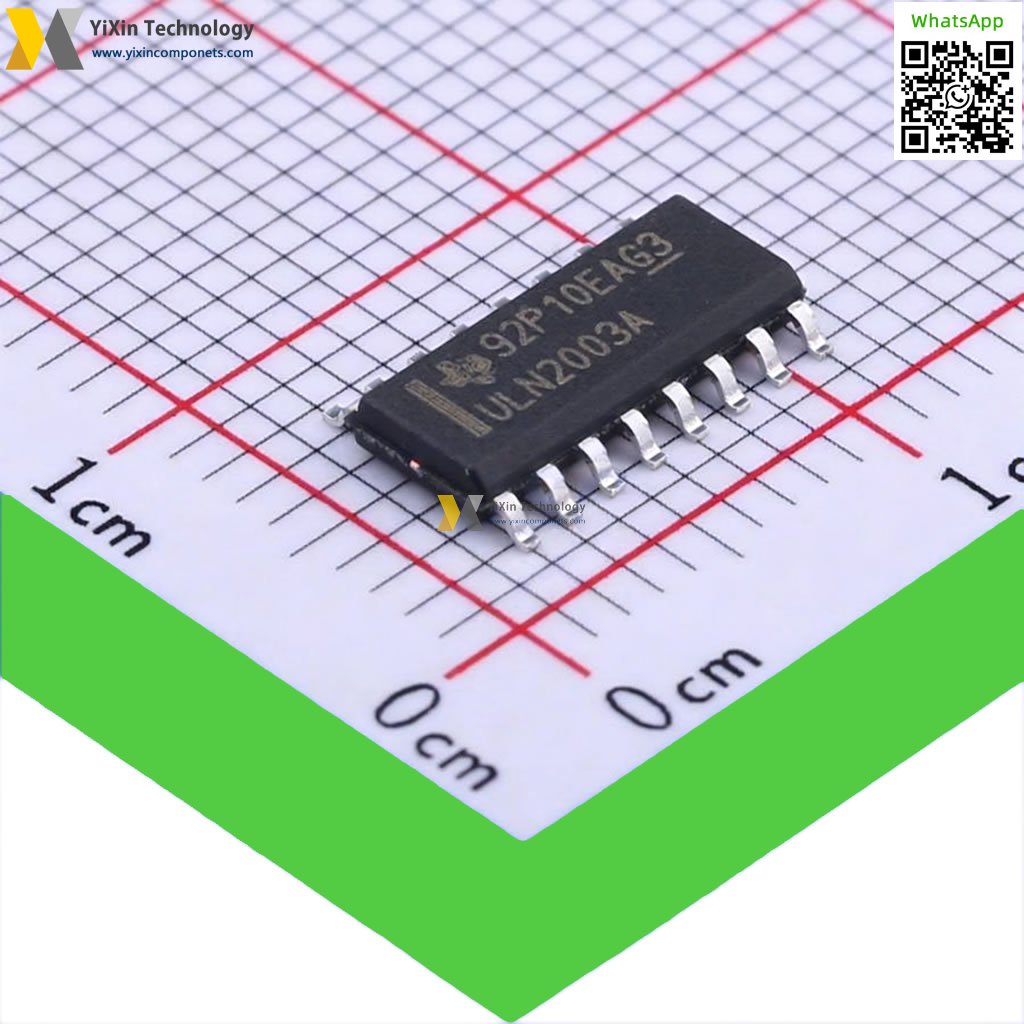

ULN2003ADR
| Part Number | ULN2003ADR |
| Manufacturer | Texas Instruments |
| Category | Transistors |
| Description | IC PWR RELAY 7NPN 1:1 16SOIC |
ULN2003ADR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | ULN2003ADR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Bipolar (BJT) - Arrays |
| Series | - |
| Transistor Type | 7 NPN Darlington |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - |
| Power - Max | - |
| Frequency - Transition | - |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
Quick Inquiry
| In Stock | 278630 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
