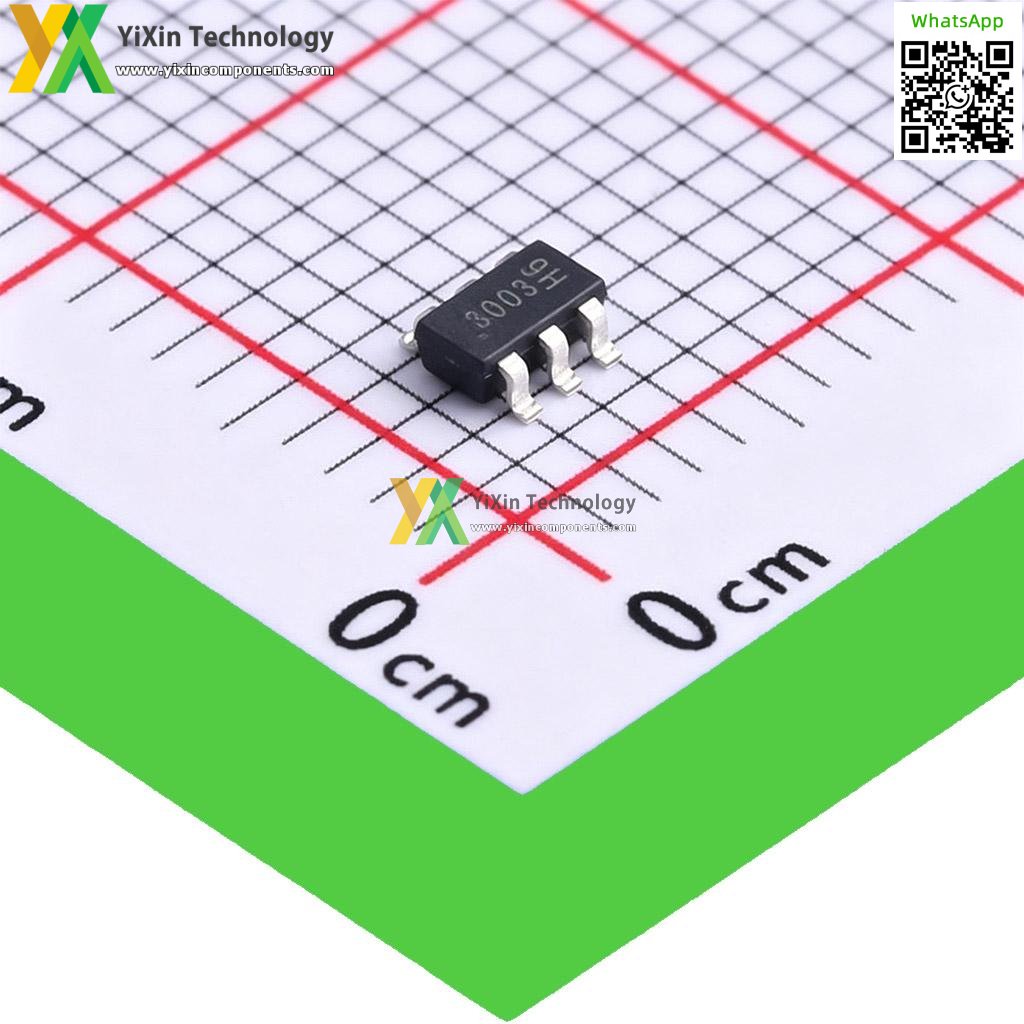

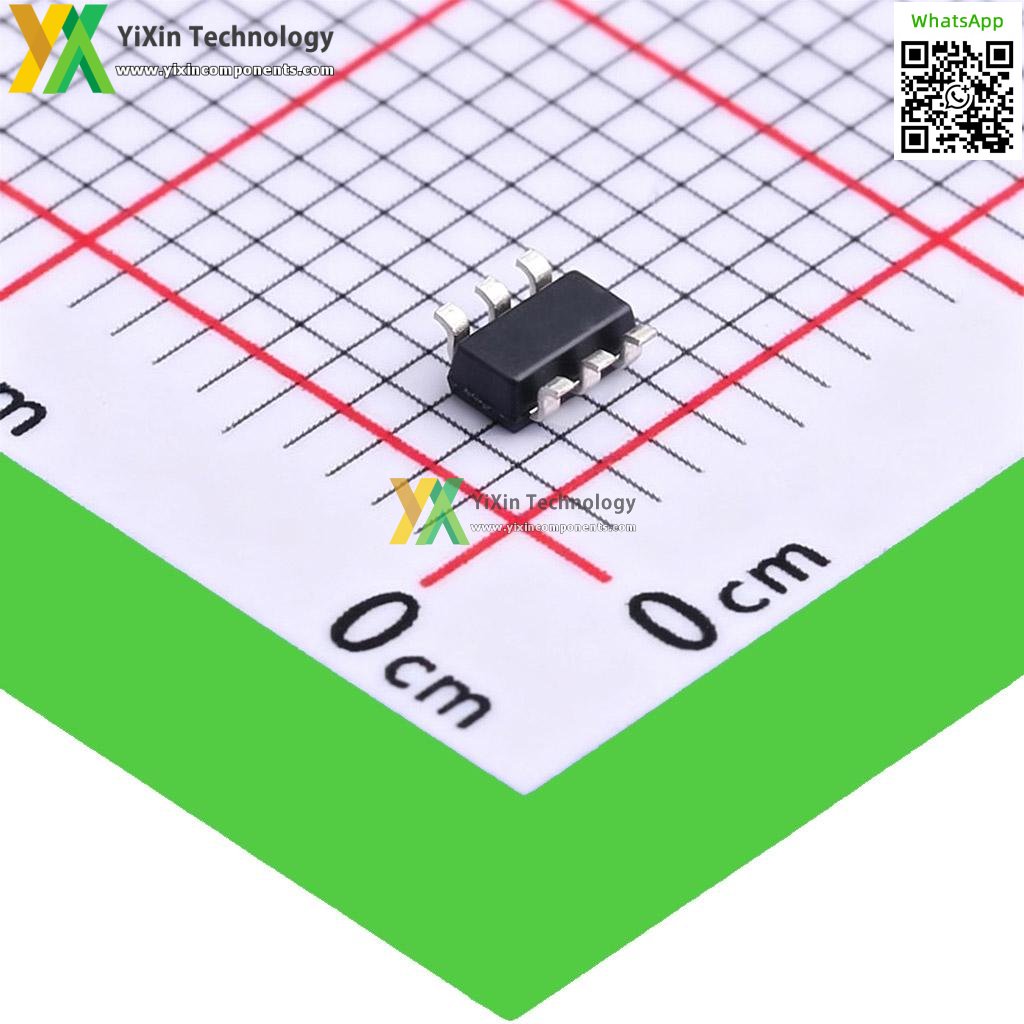

ZXGD3003E6TA
| Part Number | ZXGD3003E6TA |
| Manufacturer | Diodes Incorporated |
| Category | Power Management ICs |
| Description | IC GATE DRVR IGBT/MOSFET SOT23-6 |
ZXGD3003E6TA Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | ZXGD3003E6TA PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Diodes Incorporated |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 40V (Max) |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 8.9ns, 8.9ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
Quick Inquiry
| In Stock | 20297 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
